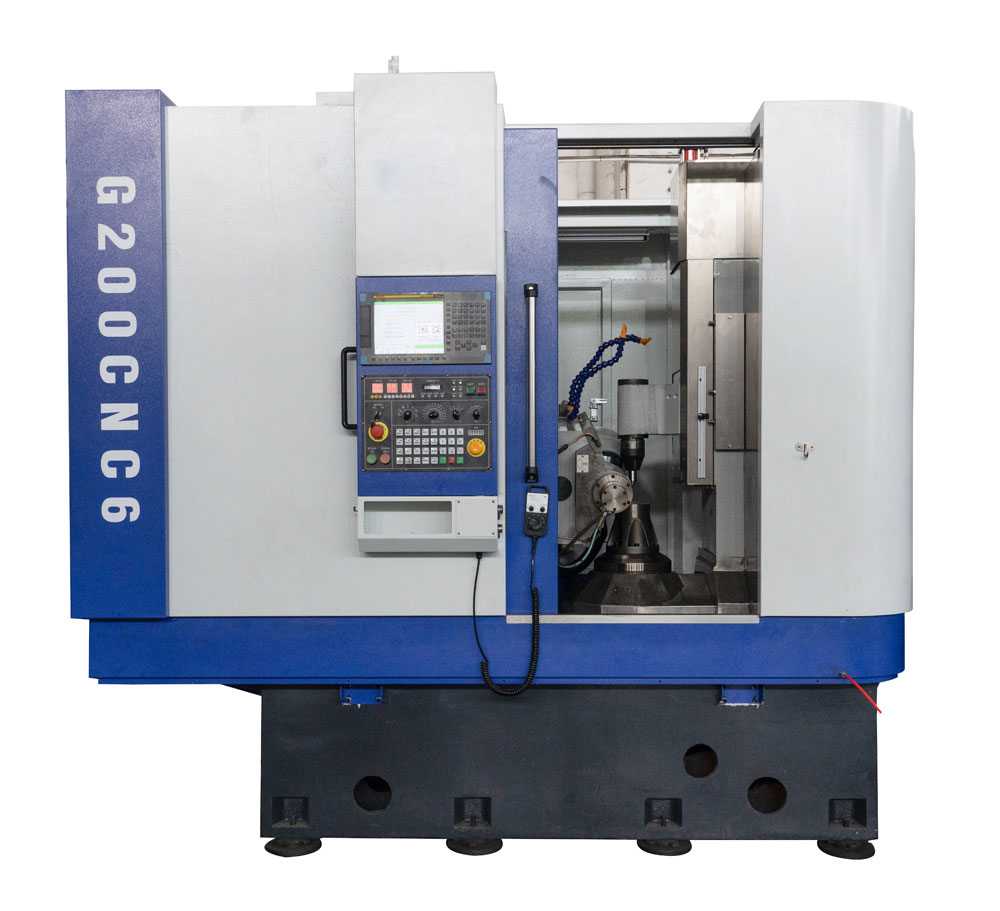

6-axis G200 CNC Gear Hobbing Machine with loading and unloading system

The largest machining diameter：200mm

The largest processing modules：4m

The largest diameter cutter：120mm

The Cutter Arbor specifications：22/27/32

The Cutting Degree：±45 °

What Timing Pulley hobbing Machine Models we can supply:

G200 YK3120 G150 YK3125 G320 G600 6 axis CNC Gear Hobbing Machine

G series G200CNC6 High Speed CNC Gear Hobbing Machine, mainly for the cylindrical spur and helical gears, the gear, under synchronous belt wheel, spline gear, worm gear, drum parts production and processing, such as research and development. Machine is horizontal layout, the design is novel, the main idea of the product design idea is: to the real needs of customers as a design goal, will improve the product quality, improve production efficiency, reduce the production cost of this a few aspects emphatically. And for the majority of users for different product design form a complete set of automatic feeding manipulator, greatly improve production efficiency.

1.Machine adopts electronic gear box function, cancelled the traditional hobbing machine complex mechanical transmission chain, greatly increases the driving rigidity and accuracy, to avoid the traditional hobbing machine multifarious hanging wheel calculation and exchange hanging wheel, etc.

2.Machine tool castings using solid double wall steel structure, and through the finite element analysis, the whole rigidity of the machine tools and precision of lathe bed stability to achieve the best state.

3. Unique way of guide rail configuration make the machine with high rigidity, increasing the rolling force is at the same time to avoid the slideway of the impact of product quality.
