How do CNC rack milling machining machines work?

CNC rack processing machine is a highly precise mechanical processing equipment, its working principle is based on digital control technology and gear processing theory, specializing in the production of rack as a key mechanical components. The rack, as an important medium for the conversion of linear and rotary motion, plays an irreplaceable role in many mechanical devices.

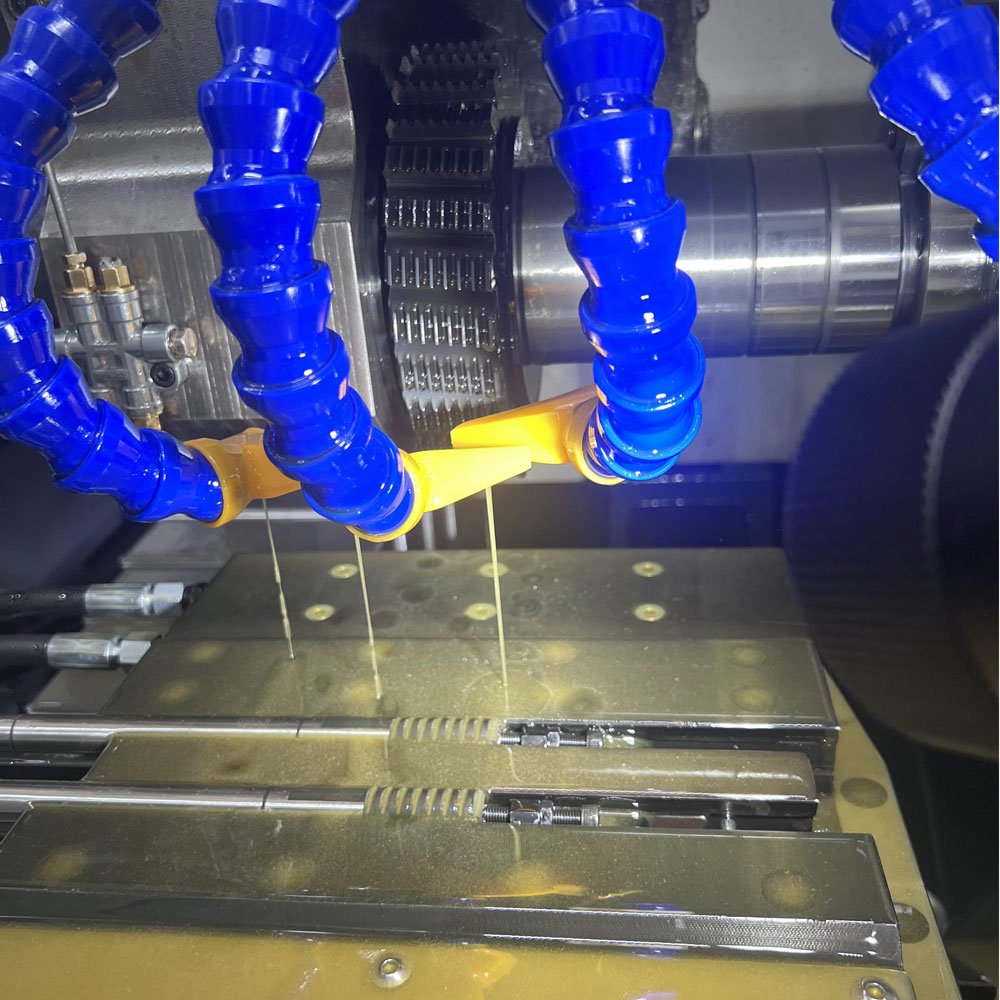

On the working principle, CNC rack processing machine tools are controlled by pre-set programs to precisely adjust the movement trajectory and speed of the tool to achieve accurate cutting of the workpiece. The entire process is supported by computer-aided design (CAD) and computer-aided manufacturing (CAM) systems to ensure the accuracy and consistency of each tooth shape. The machine is equipped with high-precision servo motors and ball screws, which are capable of realizing micron-level positioning accuracy, ensuring that the machining accuracy of the rack and pinion meets the industry's high standards.

In terms of processing workpieces, CNC rack and pinion processing machine tools are mainly designed for processing all kinds of metal materials, such as steel, copper, aluminum and its alloys. These materials are heat-treated or cold-worked and then fed into the machine tool to form the rack through continuous cutting by the tool. The length and pitch of the rack can be customized to meet the needs of different application scenarios.

The scope of application is wide, from automotive, aerospace to construction and automated production lines, wherever the conversion of linear and rotary motion is involved, the rack can be seen. CNC rack and pinion machine tools have become an indispensable part of the modern manufacturing industry due to their high precision and high efficiency, promoting the technological innovation and development in the field of mechanical transmission. Whether it is mass production or small batch customization, CNC rack and pinion processing machine can provide stable and reliable processing solutions to meet the individual needs of different industries.
