What is a CV Joint Machine?

Time:2025-02-24
A CV joint (Constant Velocity Joint) is a crucial component in automotive drivetrain systems, allowing power to be smoothly transmitted from the engine to the wheels even during steering.

What is a CV Joint Machine?

A CV joint (Constant Velocity Joint) is a crucial component in automotive drivetrain systems, allowing power to be smoothly transmitted from the engine to the wheels even during steering. While the term "CV joint machine" is not commonly used, it can be understood as a series of specialized equipment designed for the manufacturing, processing, and maintenance of CV joints. These machines include but are not limited to lathes, grinders, drills, and milling machines, all working together to ensure high-precision machining of various components of the CV joint.

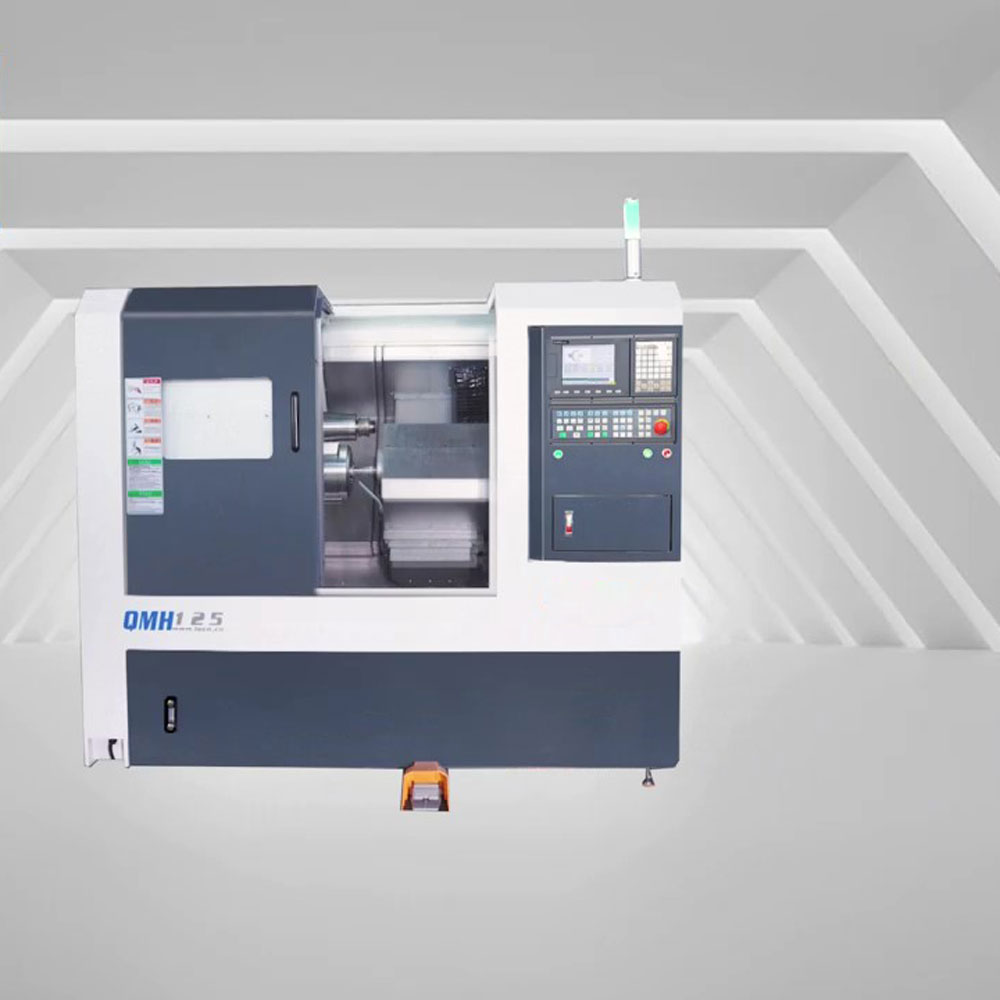

  grinding-machine

Advantages of CV Joint Machines

1. High Precision: Modern CV joint machines are typically equipped with advanced CNC (Computer Numerical Control) systems, capable of achieving extremely high precision. This level of accuracy is essential for ensuring the stability and reliability of CV joints under various operating conditions.

2. Efficient Production: High levels of automation reduce manual intervention, increase production efficiency, and lower manufacturing costs. This is particularly important for mass-produced automotive components.

3. Versatility: Many machines offer multiple functions such as turning, grinding, drilling, and milling, meeting different process requirements. This versatility not only improves equipment utilization but also simplifies production processes.

4. Reliability: High-quality materials and precise design ensure long-term stable operation of these machines, reducing downtime and maintenance costs.

Is a Cage Inner Bore Grinder a CV Joint Machine?

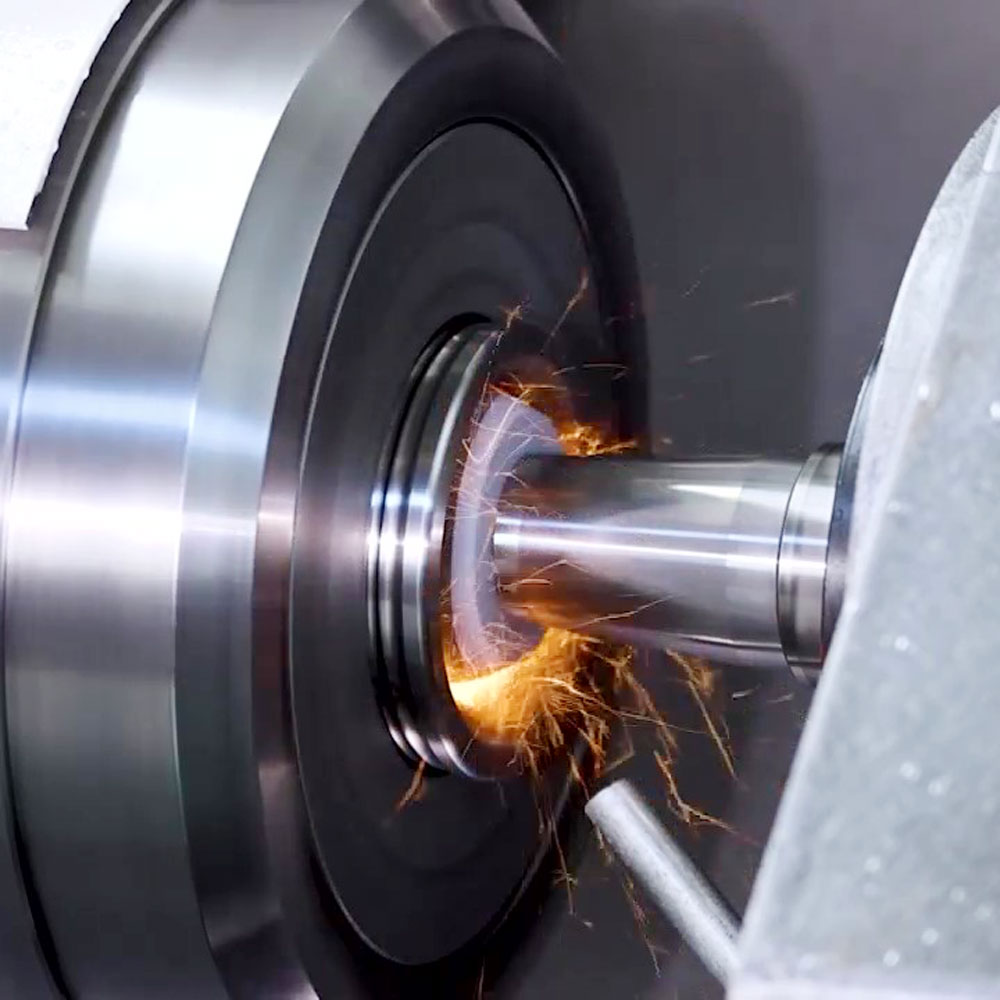

cv-joint-grinding-machine

A cage inner bore grinder is a specialized machine used for grinding the inner bores of the cage component in CV joints. The cage is a core part of the CV joint, where multiple steel balls roll precisely at specific angles to achieve smooth power transmission. Therefore, a cage inner bore grinder can indeed be considered a type of machine specifically designed for the manufacture of CV joints.


Working Principle of a CV Joint Cage Inner Bore Grinder

A CV joint cage inner bore grinder is primarily used for precision grinding of the inner bores of the cage to ensure that the steel balls can roll smoothly within the bores while maintaining minimal clearance and friction. The working principle includes the following steps:


1. Clamping: Secure the workpiece (cage) on the machine's worktable to ensure accurate positioning. High-precision fixtures are used to maintain the stability of the workpiece.

2. Positioning: Set grinding parameters such as grinding speed and feed rate through the CNC system based on the specific requirements of the workpiece to achieve optimal grinding results.

3. Grinding: The grinding wheel rotates at high speed and contacts the inner bore of the cage to remove excess material, achieving the desired dimensions and surface finish. Real-time monitoring of the workpiece condition ensures quality during the grinding process.

4. Inspection: Use measuring tools such as micrometers and coordinate measuring machines (CMMs) to check the dimensions and shape of the ground inner bore, ensuring compliance with specifications.

Advantages of a CV Joint Cage Inner Bore Grinder

1. High Precision: Utilizing advanced CNC technology and precision grinding wheels, this machine achieves very high accuracy, ensuring consistency in the size and shape of the cage inner bore. This high precision is critical for maintaining the performance of CV joints.

2. Good Stability: The machine structure is robust, minimizing vibration and improving machining quality. Low vibration helps extend the life of the grinding wheel and reduces tool change frequency.

3. High Degree of Automation: Automated loading/unloading systems and intelligent control systems reduce manual operations, increasing production efficiency. The introduction of automation not only speeds up production but also minimizes human error.

4. Adaptability: Grinding parameters can be adjusted for different sizes and models of cages, making the machine suitable for various products. This flexibility allows one machine to handle multiple types of workpieces, enhancing equipment utilization.

Application Fields of a CV Joint Cage Inner Bore Grinder

The cage inner bore grinder is mainly applied in the production of CV joints in the automotive industry, with specific application fields including but not limited to:


1. Passenger Vehicle Manufacturing: Providing high-quality CV joint components for various passenger vehicles. The large market for passenger vehicles necessitates efficient production equipment to meet demand.

2. Commercial Vehicle Manufacturing: Extending beyond small vehicles to include trucks, buses, and other large vehicles' drivetrain components. Commercial vehicles operate in more complex environments, requiring higher quality standards for their parts.

3. Construction Machinery: Grinding drive shafts and universal joints for heavy machinery like excavators and loaders. These machines need to operate reliably in harsh conditions, demanding high reliability in their drivetrains.

4. Aerospace: Some high-end aircraft may require similar high-precision components for their power transmission systems. Although applications in aerospace are relatively fewer, they demand extremely high precision and reliability.

Technological Developments in CV Joint Cage Inner Bore Grinders

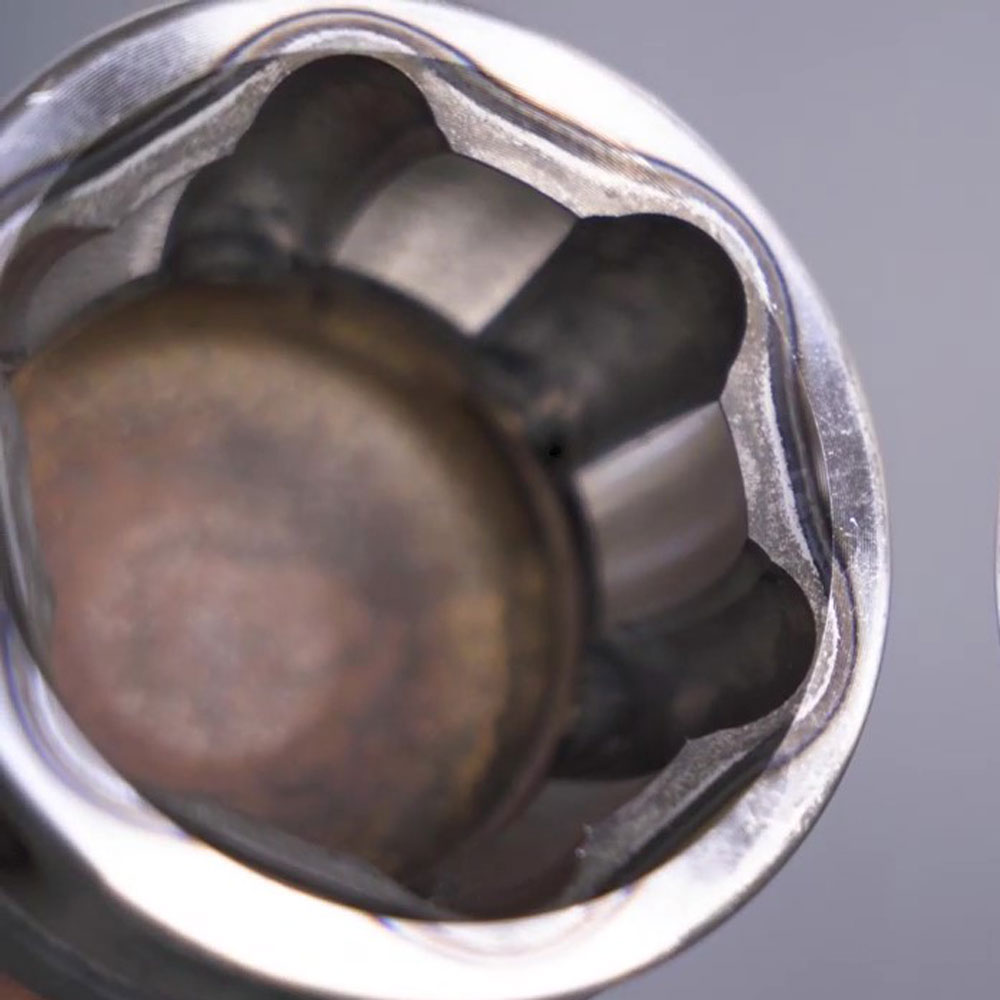

  cv-joint-machine

With technological advancements, cage inner bore grinders are continuously evolving. Here are some recent trends and directions:


1. Intelligent Control: Modern cage inner bore grinders increasingly adopt intelligent control systems capable of real-time monitoring and automatic parameter adjustment during the machining process to ensure optimal results. For example, some high-end machines feature adaptive control systems that dynamically adjust grinding parameters based on the actual state of the workpiece.

2. Green Manufacturing: Growing environmental awareness has prompted machine manufacturers to develop more energy-efficient and eco-friendly products. For instance, dry grinding techniques can reduce coolant usage and minimize environmental pollution.

3.Composite Processing: To further enhance production efficiency, some new machines integrate multiple processing functions such as turning, grinding, and drilling. This composite processing method not only increases production efficiency but also reduces the number of workpiece transfers, lowering production costs.

4. Online Inspection and Feedback: Integrated online inspection systems can detect workpiece quality in real-time during the machining process and provide feedback to the control system for adjustments. This approach effectively reduces scrap rates and improves product quality.

Future Prospects of CV Joint Cage Inner Bore Grinders

With the development of the automotive industry, especially the rise of electric vehicles and autonomous driving technologies, the demands on drivetrain systems are increasing. As a key piece of equipment in CV joint manufacturing, cage inner bore grinders will see new opportunities in several areas:



1. Electrification Trend: The widespread adoption of electric vehicles imposes higher requirements for lightweight and efficient drivetrain systems. Future cage inner bore grinders will need to achieve even higher precision and efficiency to meet the needs of next-generation drivetrain systems.

2. Smart Manufacturing: The promotion of Industry 4.0 concepts makes smart manufacturing a new trend in industrial development. Future cage inner bore grinders will become smarter, capable of seamless integration with other equipment to form complete smart manufacturing systems.

3. New Material Applications: With advancements in new material technologies, high-performance materials like carbon fiber and ceramics are gradually being applied in automotive component manufacturing. This poses new challenges for cage inner bore grinders, requiring the development of suitable processing techniques and technologies for these materials.

4. Global Competition: Intensifying global market competition compels companies to continually enhance their technical capabilities and production capacities to maintain competitive advantages. Future cage inner bore grinders will focus more on technological innovation and cost control to meet global market demands.

Conclusion

In summary, the various machines involved in CV joint manufacturing play significant roles. Particularly, the cage inner bore grinder, as a key piece of equipment, leverages its high precision, efficiency, and adaptability to perform indispensable functions in modern industrial production. Whether for enhancing product quality or driving industry advancement, these machines contribute positively.
