Heavy Duty CNC Gear Grinding Machine for Wind and Mining

SKMC Series CNC Profile Gear Grinding Machine: Redefining the Height of Heavy-Duty Gear Grinding

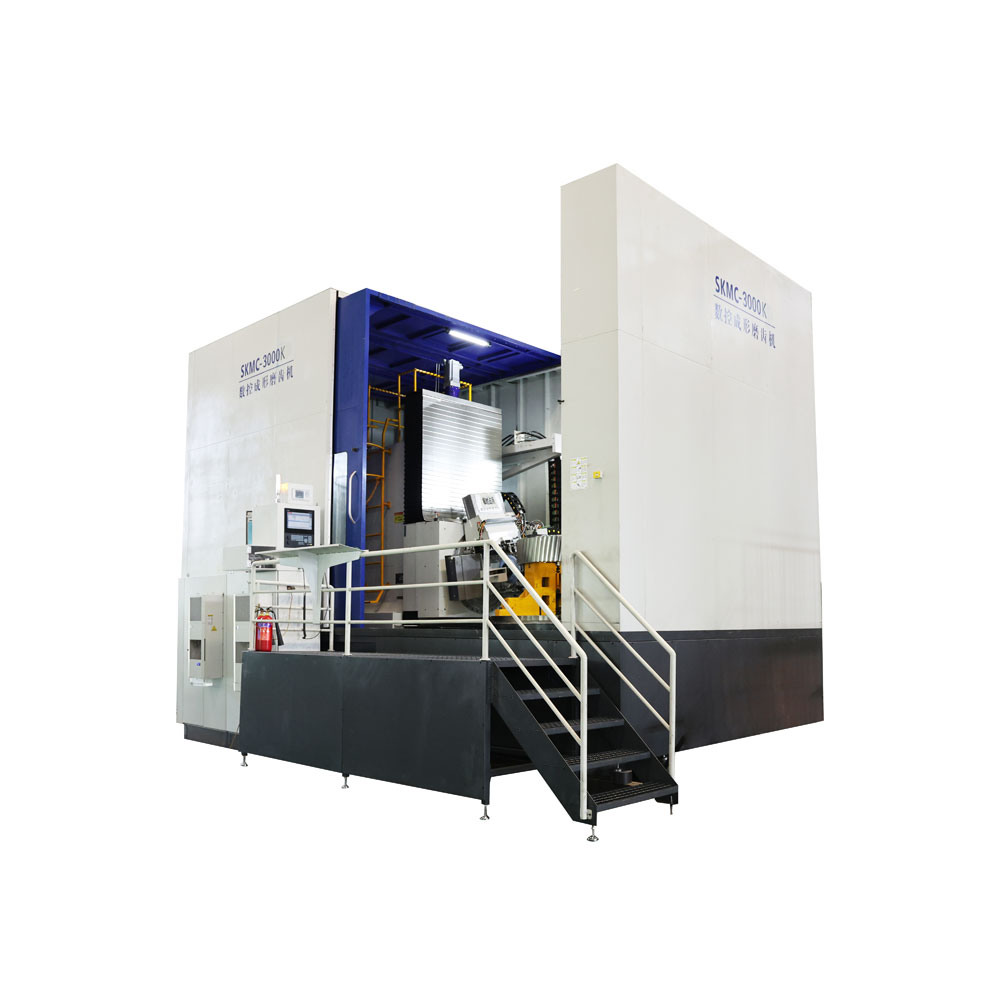

In a modern heavy-duty machine tool manufacturing workshop, a colossal machine stands silently—the SKMC Series CNC Profile Gear Grinding Machine, a super-heavy-duty gear grinder with a maximum grinding external diameter of up to 2 meters and a maximum external tooth tip diameter reaching Ø3000mm. As we step into the factory, the camera slowly pans over the towering machine enclosure, massive gear workpieces, precision hydrostatic guideways, and dual-worm gear rotary tables. Every detail speaks to the rising power of China's high-end equipment manufacturing industry. This is not merely a gear grinding machine; it is a masterpiece of Chinese intelligence in the field of precision transmission.

As one of the most advanced high precision gear grinding machines in China, each SKMC Series CNC Profile Gear Grinding Machine embodies the wisdom and craftsmanship of engineers—from design and manufacturing to software and hardware integration. It is not just a machining device, but an intelligent system integrating cutting-edge technologies, specifically developed to meet the stringent demands of high modulus, high precision gears in high end sectors such as wind power, tunnel boring machines , mining machinery, and construction machinery rotary supports.

The "Heart" of the Gear Grinding Machine: Precision Feed and Rotary Table Technology

In heavy duty gear grinding machines, precision and stability are paramount. The SKMC series adopts roller/hydrostatic guideways on the X and Z axes, ensuring extremely high feed resolution, low friction coefficients, and extended service life. The hydrostatic guideways are equipped with negative-pressure suction and positive-pressure air ring sealing technologies, enabling internal oil return within the oil cavity, effectively preventing leakage and ensuring long-term clean and stable operation. Combined with full-closed-loop control via grating scales, the gear grinding machine achieves micron-level positioning and repeat positioning accuracy, providing solid assurance for every grinding operation.

The"rotary soul"of the gear grinding machine—the dual-worm dual-worm-gear backlash-elimination rotary table—achieves worm gear accuracy up to DIN Class 2. Direct-drive torque motor technology ensures a dividing and positioning accuracy of up to 3 arcseconds. The full hydrostatic guideway design provides exceptional load-bearing capacity and excellent dynamic response characteristics, ensuring stable performance even when processing large-diameter gears up to Ø3000mm. This level of rotary table technology is unattainable by conventional gear grinding machines.

The Intelligent Brain: Multi-Functional Profile Gear Grinding Software System

The SKMC series gear grinding machine earns its title as an"intelligent gear grinder"thanks to its independently developed multi-functional profile gear grinding software. This software not only masters core algorithms but also integrates various tooth profile and tooth trace modification functions, featuring a user-friendly interface and convenient human machine interaction. The built-in process expert database automatically recommends optimal grinding parameters for different workpieces, significantly improving processing quality and efficiency. Whether it's a heavy-duty gear with a modulus as high as 30mm or a precision component with a minimum external tooth root diameter of Ø500mm, this gear grinding machine handles them with precision.

Closed-Loop Control: From Error Compensation to Precision Retention

In the realm of high precision gear grinding machines, error control is critical to success. The SKMC series implements active precision design during the manufacturing, assembly, and commissioning of key components, strictly controlling all errors throughout the entire process. The integrated online measurement system can detect processing errors in real time, feed back to the grinding system for correction, and achieve true closed-loop processing. By comparing with offline inspection reports, the gear grinding machine can also perform error calibration and compensation, ensuring long term operational precision stability.

Structural Optimization: The Perfect Balance of Rigidity and Vibration Resistance

As a heavy duty gear grinding machine with a maximum grinding diameter of 2 meters, its bed and column base components employ multi-objective optimization design, providing high static and dynamic stiffness. Key components use backlash elimination and locking technologies, significantly enhancing vibration resistance and effectively reducing grinding vibrations, ensuring surface finish and tooth profile accuracy. This mechanical dynamic optimization design enables the SKMC series gear grinding machine to perform exceptionally even under extreme operating conditions.

Wide Applicability: From Wind Power to Tunnel Boring, from Mining to Construction Machinery

The SKMC Series CNC Profile Gear Grinding Machine is suitable for grinding various high-precision external cylindrical gears and can be optionally equipped with internal grinding arms and grinding heads, extending its capabilities to internal gear processing. Its applications span high-end industries such as mechanical presses, construction machinery rotary supports, tunnel boring machine main bearings, wind power gearboxes, and mining machinery. Whether it's the massive gearbox of offshore wind turbines or the main bearing of deep earth tunneling TBMs, this gear grinding machine is fully capable.

Leading Chinese Gear Grinding Machines to the World

In the roar of the factory, what we see is not just a gear grinding machine, but a symbol of a nation's high-end manufacturing capabilities. The SKMC Series CNC Profile Gear Grinding Machine, with its formidable specifications—2-meter maximum grinding diameter, Ø3000mm tooth tip diameter, and 30mm maximum modulus—redefines the standard for heavy-duty gear grinding machines. It is a source of pride for "Made in China."

From design to manufacturing, from software to systems, from precision to stability, each SKMC gear grinding machine writes a new chapter in China's high-end equipment industry. In the future, this gear grinding machine will continue to serve major national engineering projects, driving China's transformation from a "manufacturing giant" to a "manufacturing powerhouse." And we will witness more "Chinese gear grinding machines" stepping onto the global stage, shining brightly worldwide.
