CNC Single Column Mobile Vertical Machining Centre Lathe for Gear/Ring Processing

PRODUCT > CNC Lathe > CNC Single Column Mobile Vertical Machining Centre Lathe for Gear/Ring Processing

CNC Single Column Mobile Vertical Machining Centre Lathe for Gear/Ring Processing

CNC Large-scale Vertical Lathe Series:
High Precision, High Rigidity, High Stability, Heavy Cutting, High Efficiency
Diameters ranging: 1 to 3 meters.

Product details

A:The column is designed with an integrated box structure, and configured with largespan and wide hard rail contact surface, with small vibration and high stability

B: Designed with a lifting crossbeam and hydraulic locking mechanism, it is easy to operate and has strong maneuverability in machining range as well as a simple
structure;
C: The workbench adopts TIMKEN cross roller bearings from US to ensure that the spindle has high radial and axial bearing capacity at high and low speed, so as to achieve high precision, low noise and durability;

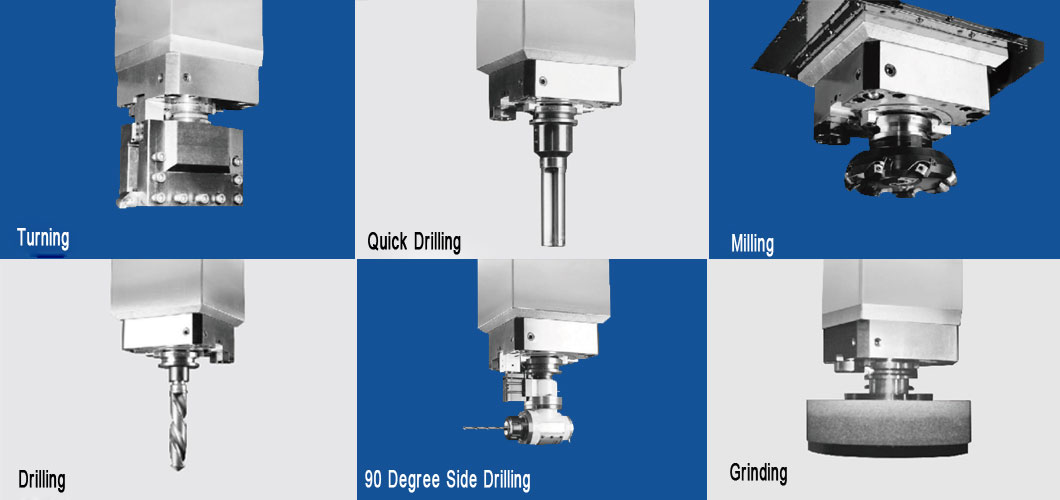

D: With high output power, drilling and milling accessories and CF axis control, it shows multifunctions of one machine, such as turning, milling, drilling and tapping.

Product parameters

Standard machinery specifica		Unit	SZ1000ATC	SZ1200ATC	SZ1600ATC
Machinery capability/capacity
Discface diameter		mm	ø1000	ø1250	ø1600
Maximum rotation diameter		mm	ø1350	ø1600	ø2000
Maximum cutting diameter		mm	ø1100	ø1400	ø1800
Maximum cutting height		mm	900	1200	1200
Maxumum weight of machined object		kg	4000	5000	8000
Amount of movement
Left and right(X-axis)stroke		mm	‐400,+720	‐600,+875	‐100，+1125
Up and down (Z-axis)stroke		mm	800	900	900
Crossbeam up/down stroke		mm	500	750	750
Spindle
Spindle speed	Low gear	rpm	1~160	1~108	1-65
	High gear	rpm	160~600	108~350	65~250
#2Spindle speed	Low gear	rpm
	High gear	rpm
Maximum torque of spindle		N.m(kgf-m)	8240(840)	8180（834）	19,677（2007）
Feed speed
X-axis fast feed		m/min	12	12	12
Z-axis fast feed		m/min	10	10	10
Cutting feed		mm/min	1~2000	1~2000	1~2000
Manual feed		mm/min	0~6	0~6	0~6
Automatic tool change device
Number of tool positions			12tool positions	12tool positions	12tool positions
Shank type		7/24taperBT-50	7/24 taper BT-50	7/24 taper BT-50	7/24 taper BT-50
Maximum tool size		mm	2800W×150T×400L	2800W×150T×400L	2800W×150T×400L
Maximum tool weight		kg	50	50	50
Maximum tool magazine capacity		kg	600	600	600
Tool change time(tool to tool)		Sec	40	40	40
Spindle motor
(FANUC)Spindle motor(FANUC)		kw	37/45（α40）	37/45（α40）	37/45（α40）
#2 spindle motor		kw
X-axis servo motor		kw	6（α40i）	6（α40i）	6（α40i）
Z-axis servo motor		kw	6（α40iβ）	6（α40iβ）	6（α40iβ）
CF-axis servo motor		kw
Motor for cutting fluid pump		kw	1.5	1.5	1.5
(SIEMENS)Spindle motor(SIEMENS)		kw	37/51（1PH7167）	37/51（1PH7167）	37/51（1PH7167）
#2 spindle motor		kw
X-axis servo motor		kw	7.7（1FK7105）	7.7（1FK7105）	7.7（1FK7105）
Z-axis servo motor		kw	7.7（1FK7105）	7.7（1FK7105）	7.7（1FK7105）
CF-axis servo motor		kw
Motor for cutting fluid pump		kw	1.5	1.5	1.5
Tank capacity
Hydraulic tank		L	60	130	130
Cutting fluid tank		L	750	600	550
Lubricating oil tank		L	4.6	4.6	4.6
Power specifications		AC220±10%.60Hz±5Hz
Power demand		KVA	65	65	65
Machine tool dimennsions(L×W×H)		mm	4700×3900×4500	5050×4170×4760	4500×5300×5000
Machine weight approximately		kg	21,000	33,000	24,500
Accuracy		mm	Positioning accuracy:±0.007/500 repeated accueracy:±0.005 C-axis positioning accuracy：±7.5”/360° C-axis repeated accueracy：±5”

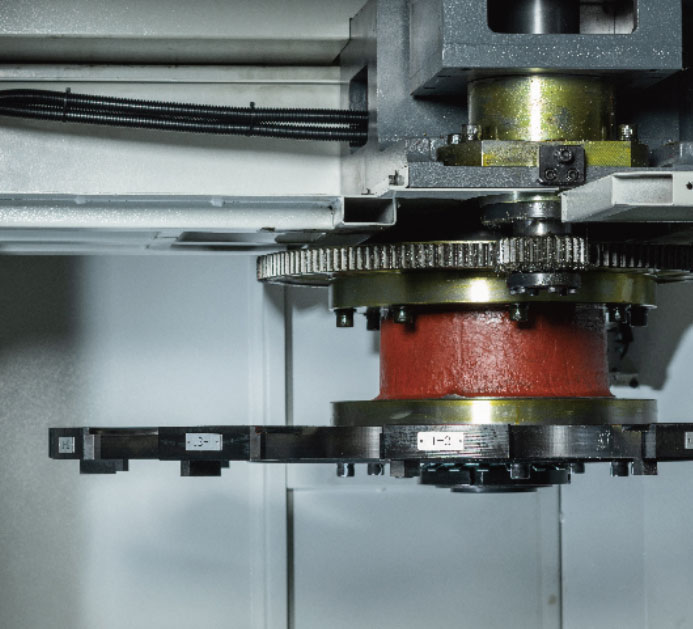

The Tool Magazine

	ATC+C Type The design of tool magazine with 16 tool positions is convenient for diversified machining requirements, and the bidirectional nearby tool selection achieves user-friendly control. Δ Maximum weight of a single tool: 50kg. Δ Maximum load of tool magazine:800kg. Δ Maximum allowable tool size of ATC tool magazine is Δ 280W×150T×400L.

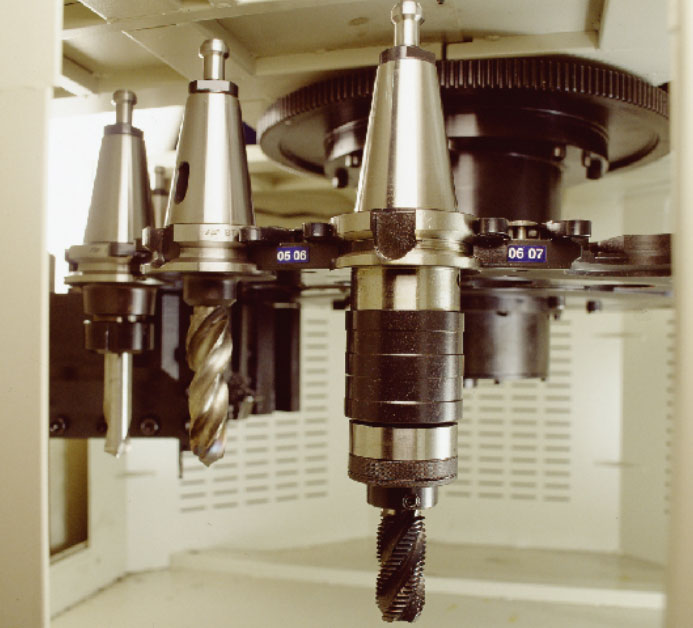

AUTOMATIC TOOL CHANGE SYATEM

	Full Servo 12T BT50 Tool Magazine Accurate positioning and error-free tool changing; the tool magazine is driven by a servo motor, with fast positioning and high torque. There are four types of tool positions (optional): 24,32,48 and 60.
AUTOMATIC TOOL CHANGE SYATEM

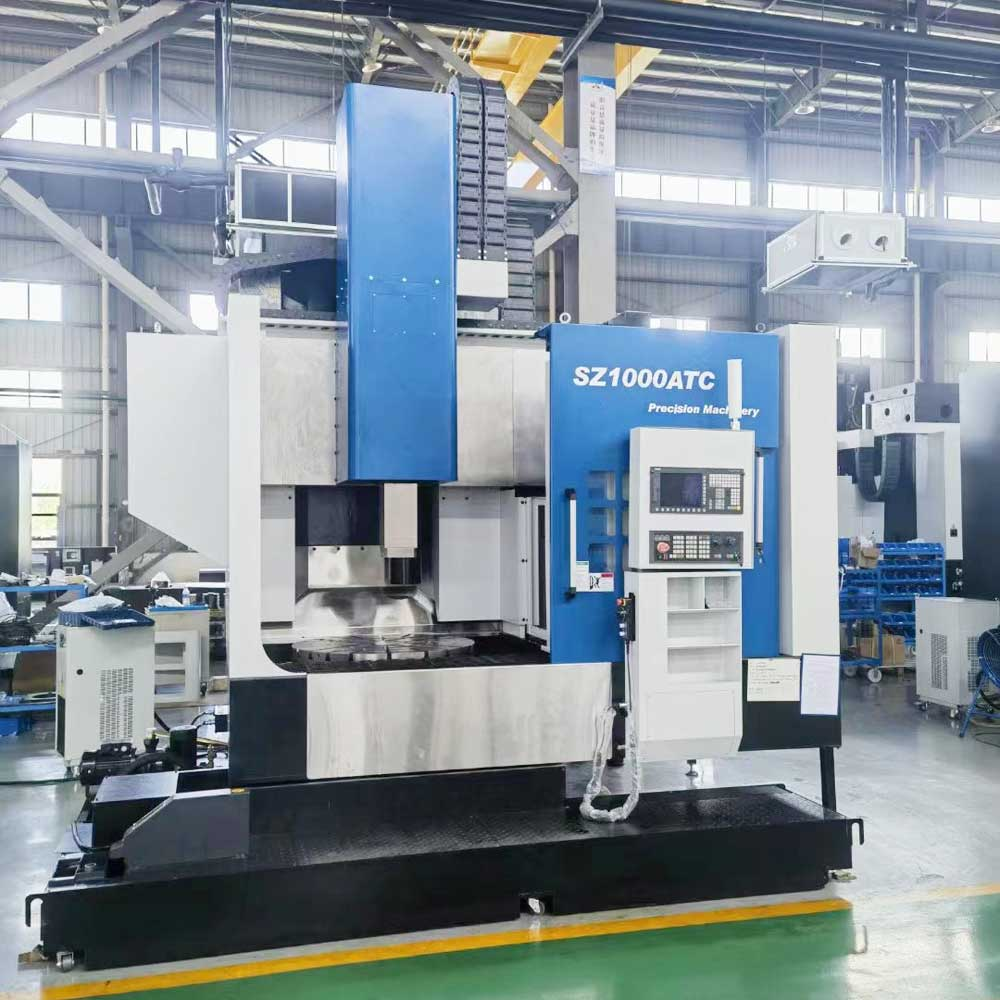

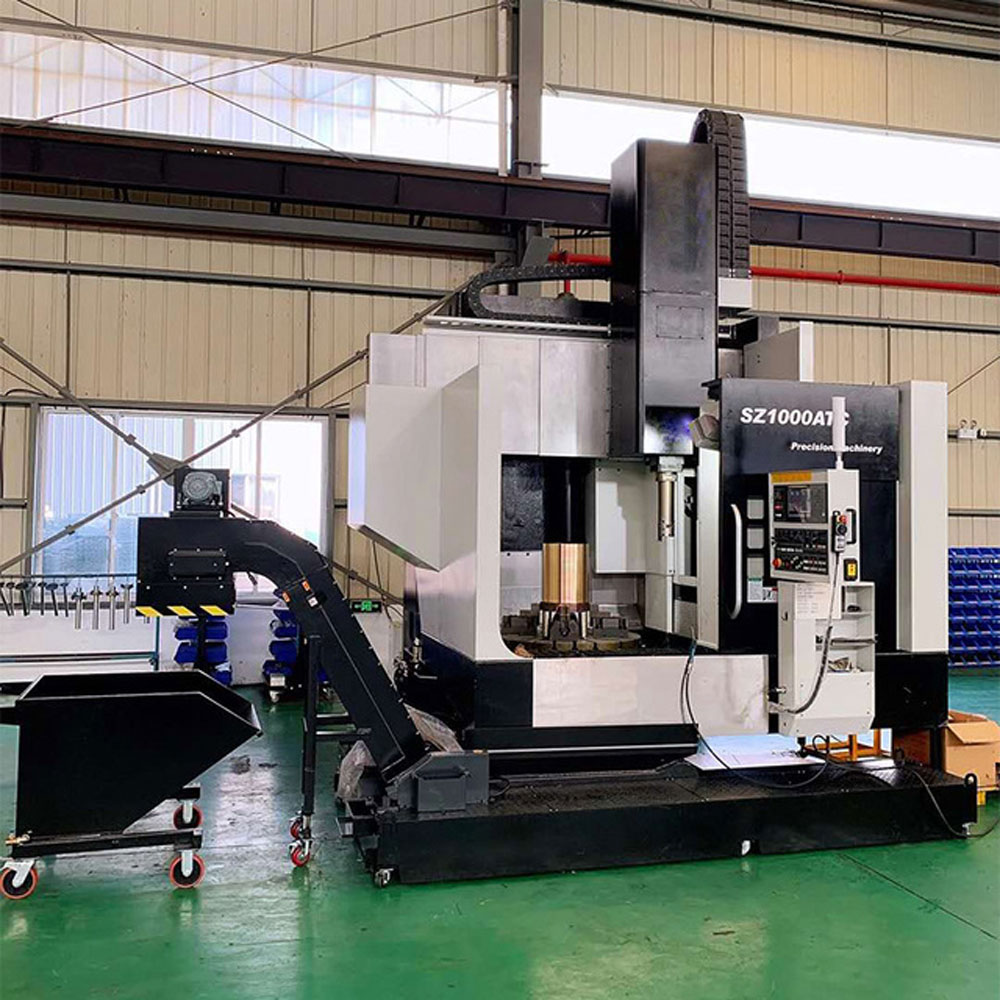

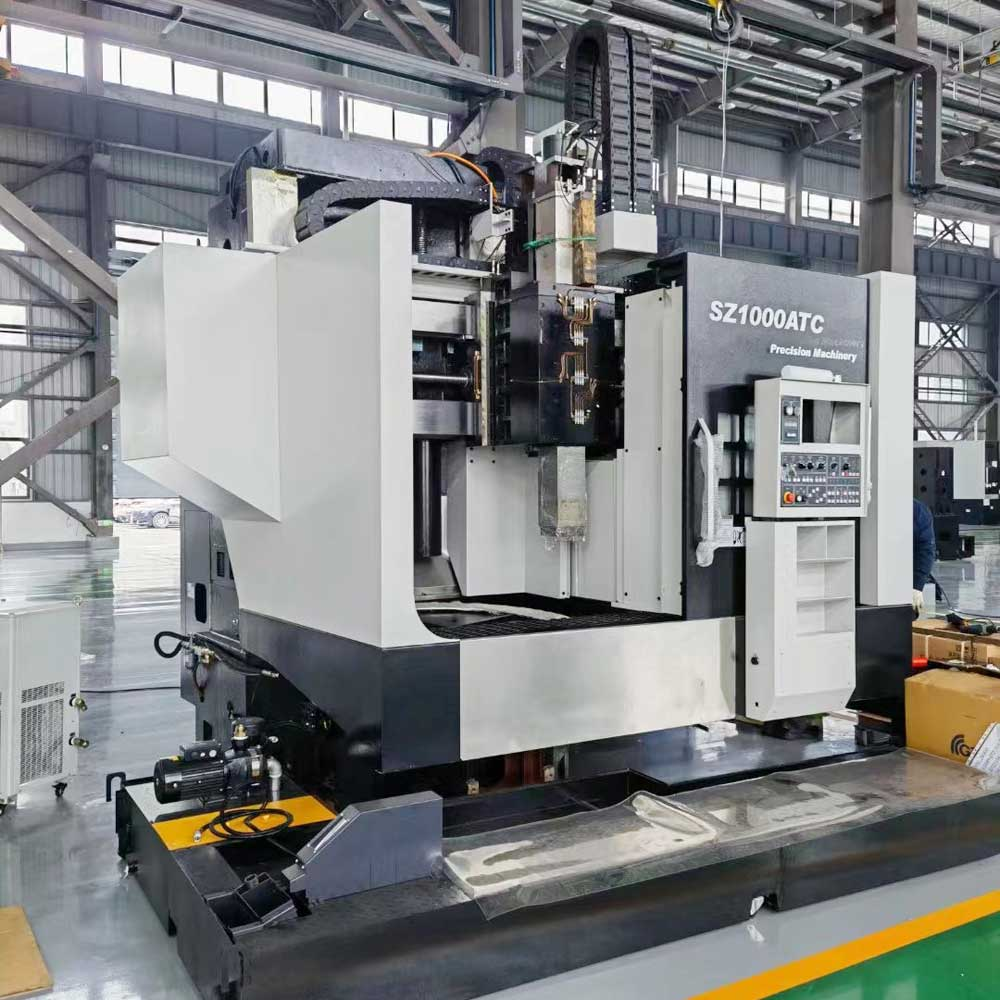

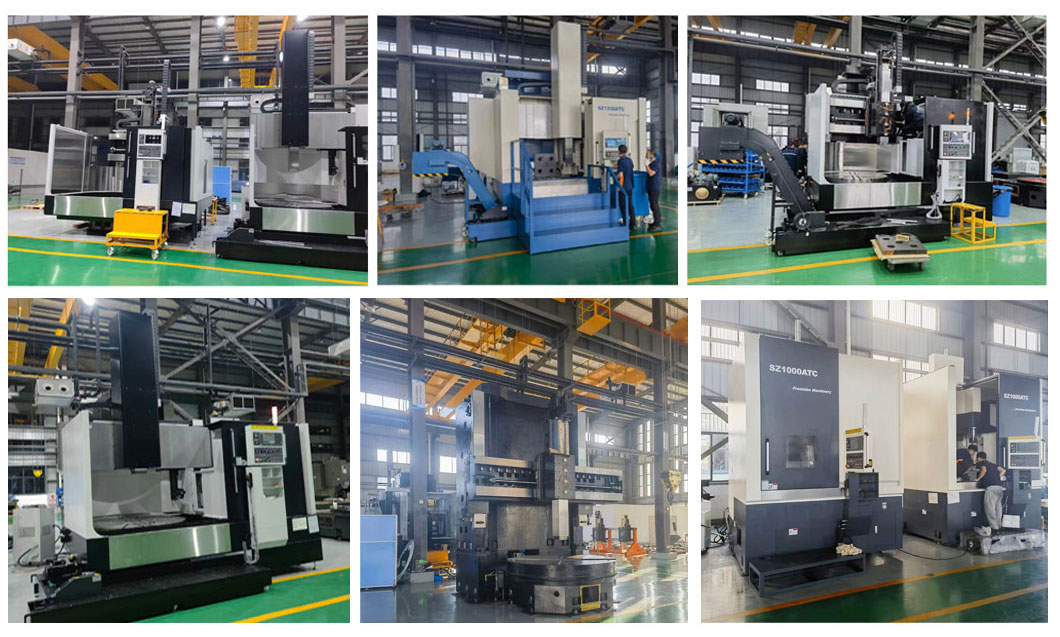

Product Display

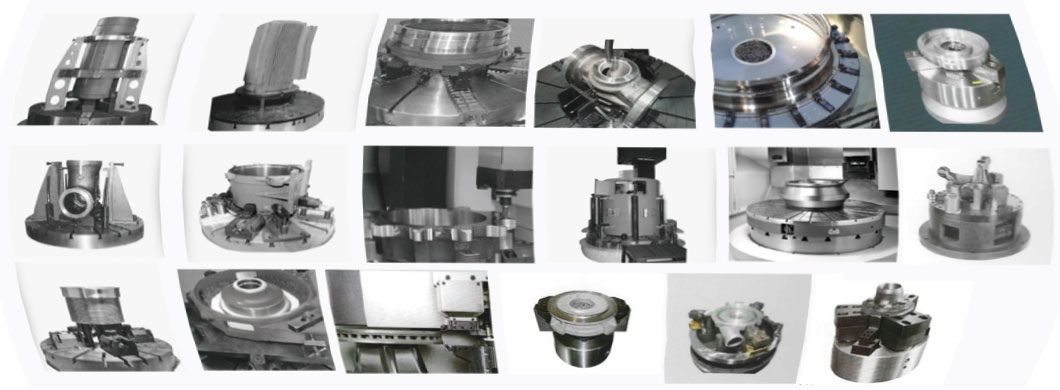

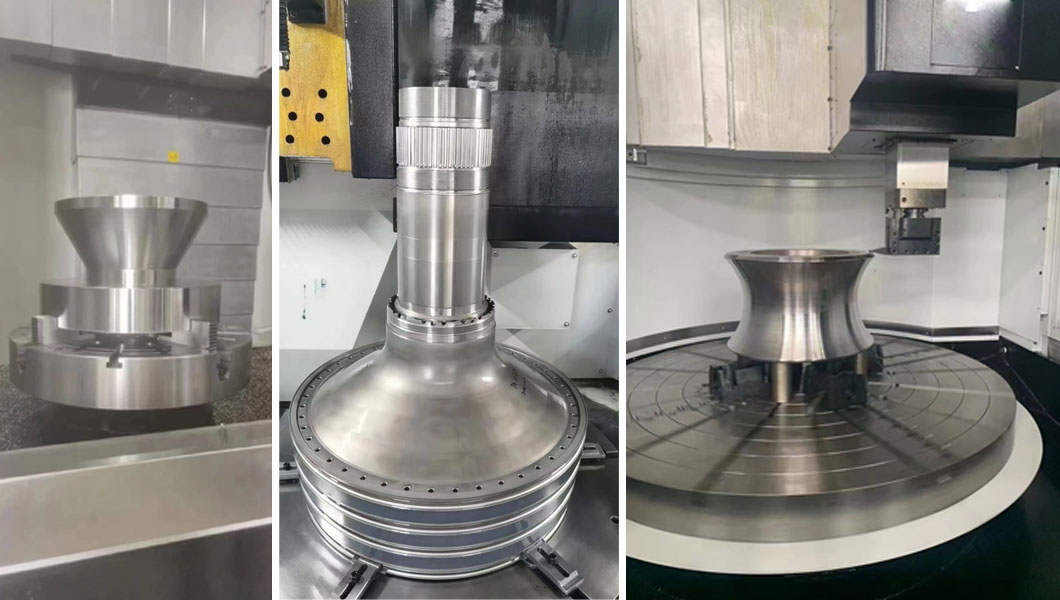

The Workpiece

Package

Company FAQ

1.What are your normal lead times?

Normally, 30 to 60 days

2.What kind of package do you offer?

Standard wooden case packing

3.Do you have certification of your machine?

CE certificate

4.How about the warranty service?

24 months

5.How about the installation and commissioning?

we will enclose the production specification with the machine, and we could provide the video online to you, and our engineers are available to debug machinery overseas.

6.How to select the suitable machine?

Pls tell us the machine you need, Includes drawings,specifications and other requirements.

7.How to do it if we meet the issue during the operation?

We provide completely after sales service, and our engineers are available to service machinery overseas.

8.If we want to learn how to operate the machine, Can you provide it?

Yes, we have special service team which will offer you professional guidance.
