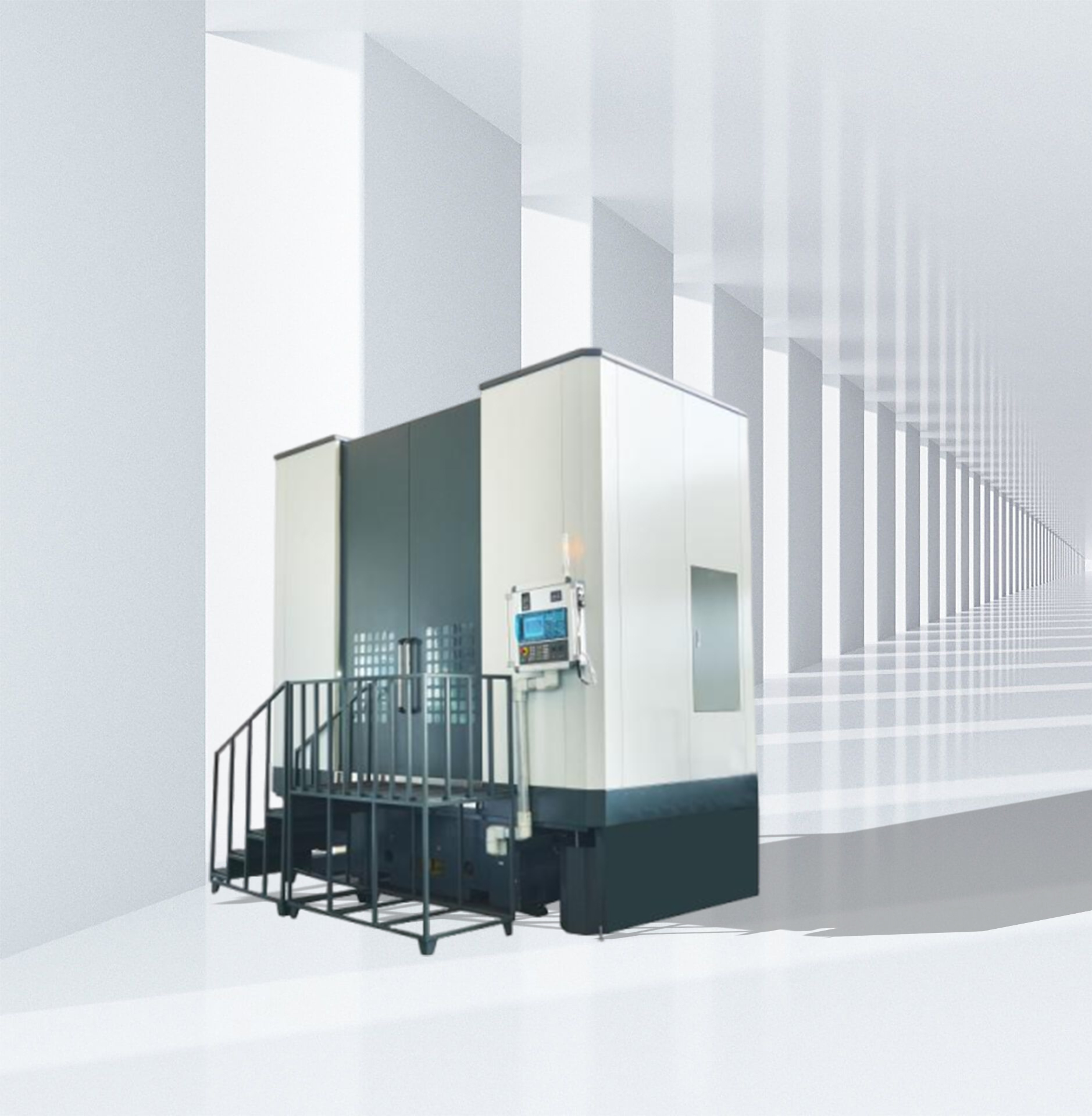

vertical composite grinding machine for OD ID face grinding

The vertical composite grinding machine stands out with its multi-functional grinding capability, enabling external, internal, and face grinding in a single setup. Equipped with a high-efficiency Automatic Tool Changer (ATC), it allows seamless switching between different grinding processes without manual intervention. The built-in automatic measurement and compensation system ensures micron-level accuracy, while the thermal displacement control and continuous coolant system provide stable performance even in demanding environments. Powered by the advanced Siemens SINUMERIK 828D CNC system, the machine supports intelligent operation, remote program updates, and fast fault diagnosis—making it ideal for high-precision, high-efficiency, and flexible machining in industries like automotive, aerospace, and heavy machinery.

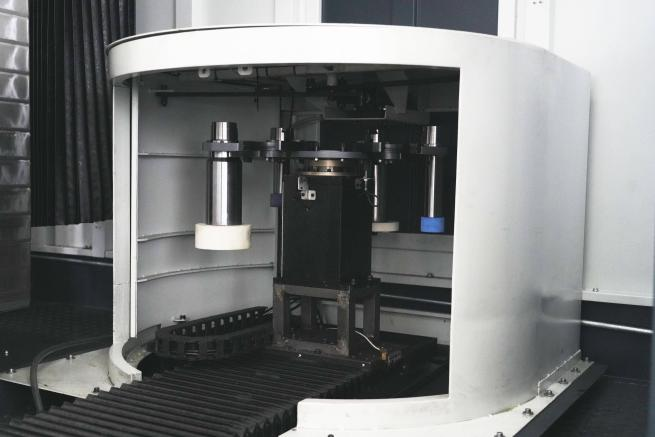

ATC (Automatic Tool Changer) as standard equipment.

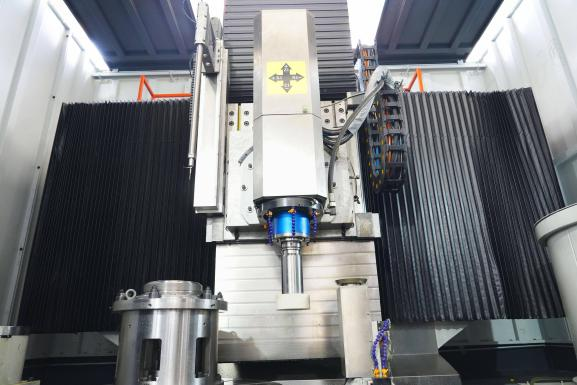

Combined grinding of ID, OD and endface for high-precision machining.

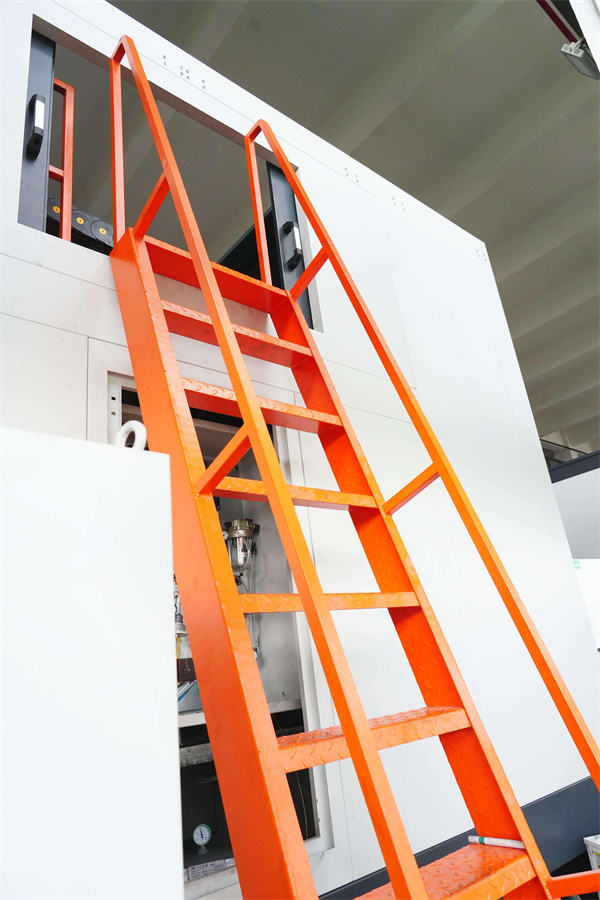

One key advantage of having a rear maintenance door with a backpack-style frame on a vertical grinding machine is：Improved accessibility for maintenance, reducing downtime.

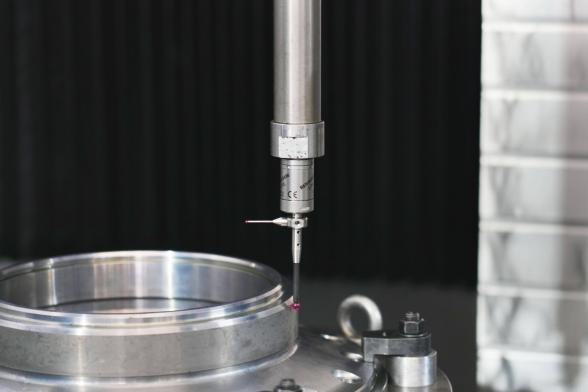

Automatic measuring device: automatic measurement and automatic compensation of ID, OD and endface.

Master gauge minimizes thermal displacement for high-precision measurement. Continuous supply of coolant ensures stable calibration;

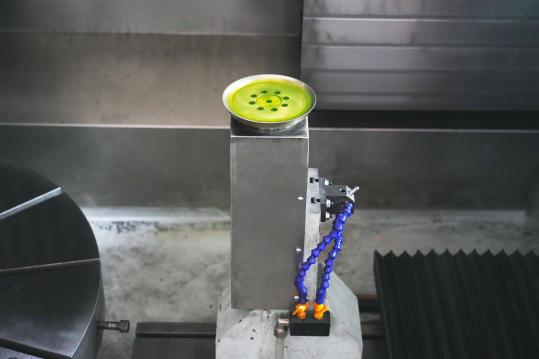

Diamond pen correction for long service life and precise surface finish control.

Q: What is the warranty period?

A: We offer a warranty service for all purchased products ranging from 12 to 24 months, ensuring you are worry-free during the use of our equipment. Choosing us means choosing a long-term and reliable partner.

Q: What is the delivery time?

A: For in-stock items, we guarantee delivery within 1-2 months; for custom-manufactured products, we commit to delivering within 5-6 months. No matter how urgent your needs are, we can respond quickly to ensure your project proceeds on schedule.

Q: Do you provide after-sales service?

A: Yes, we provide comprehensive after-sales services, including but not limited to timely supply of spare parts, online technical support, on-site installation and commissioning, as well as operational training. We strive to offer you the most thoughtful service support to ensure the efficient operation of equipment and assist in the continuous growth of your business.

Q: What additional products or services do you offer?

A: we also provide "turnkey" engineering services, customizing automated production lines according to customer needs to ensure seamless integration with existing production processes. We are committed to offering complete solutions to every customer, helping you achieve maximum production efficiency.
