large heavy cnc gear hobbing machine with 1-5m dia

PRODUCT > Gear Hobbing Machine > large heavy cnc gear hobbing machine with 1-5m dia

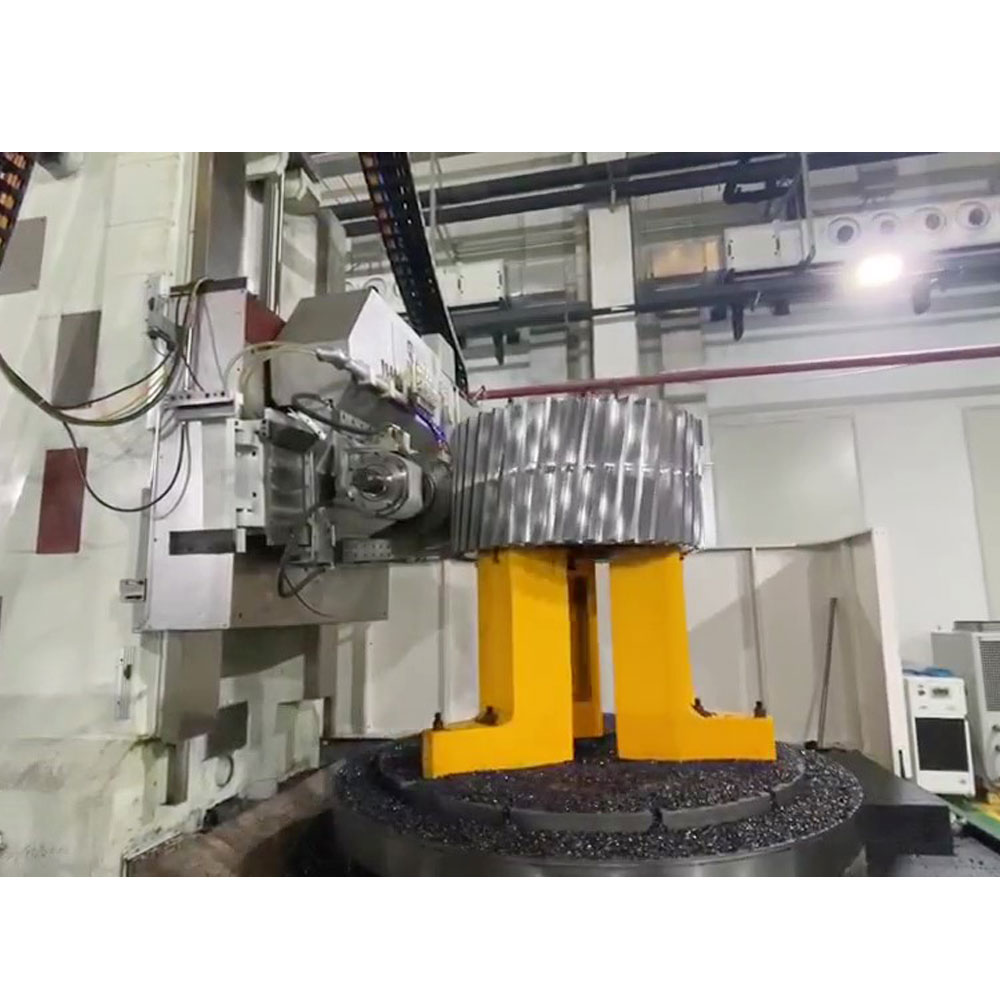

large heavy cnc gear hobbing machine with 1-5m dia

High-speed gear hobbing machine designed and developed for large modulus gears, with interchangeable milling heads and powerful functions.

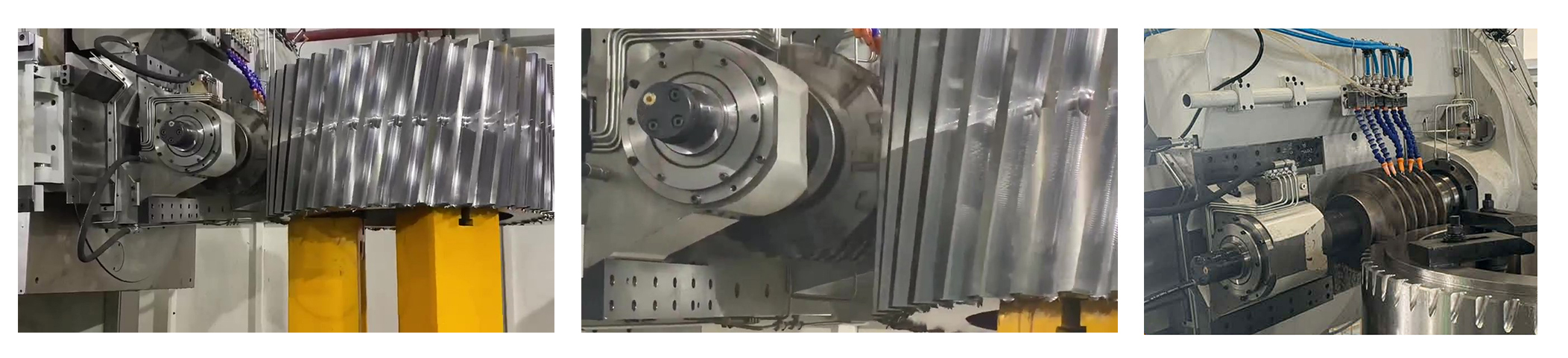

1. The motor of the machine tool hob spindle is transmitted to the hob spindle through a high-precision gear pair, and the hob spindle end gear adopts a backlash elimination mechanism.
2. The hob spindle support adopts a hydrostatic bearing structure to improve the transmission rigidity and anti-torsion vibration capability.
3. The tool holder spindle adopts a high-precision HSK interface and a built-in automatic clamping system to provide higher precision, rigidity and balance; avoid insufficient system rigidity to aggravate tool wear, thereby increasing the tool life.




1.What are your normal lead times?

Normally, 30 to 60 days

2.What kind of package do you offer?

Standard wooden case packing

3.Do you have certification of your machine?

CE certificate

4.How about the warranty service?

24 months

5.How about the installation and commissioning?

we will enclose the production specification with the machine, and we could provide the video online to you, and our engineers are available to debug machinery overseas.

6.How to select the suitable machine?

Pls tell us the machine you need, Includes drawings,specifications and other requirements.

7.How to do it if we meet the issue during the operation?

We provide completely after sales service, and our engineers are available to service machinery overseas.

8.If we want to learn how to operate the machine, Can you provide it?

Yes, we have special service team which will offer you professional guidance.
