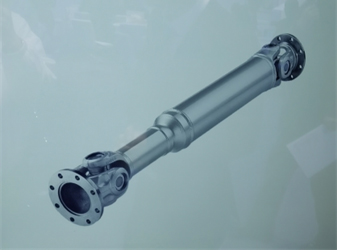

CNC cylindrical grinder grinding machine with Siemens Systems for Cardan Shaft

PRODUCT > CNC Grinding Machine > CNC cylindrical grinder grinding machine with Siemens Systems for Cardan Shaft

CNC cylindrical grinder grinding machine with Siemens Systems for Cardan Shaft

Adopting computer digital control technology to perform precision grinding processing on the outer surface of the work piece.
high precision, high efficiency and high flexibility.
Grinding Length:500-2000mm
OD grinding scope:6-500mm

Product advantages

High-precision machining: Adopting precision servo drive system and high-precision rolling guide, together with advanced control system, it can achieve micron-level machining accuracy, especially suitable for mass production of precision parts, ensuring consistency and stability of product size.

High degree of automation: the machine supports programmed control and automated operation, which can automatically complete the grinding process according to the preset processing parameters, greatly reducing manual intervention, lowering the operating error, improving the production efficiency, and at the same time reducing the labour intensity of workers.

Powerful adaptability and flexibility: CNC cylindrical grinding machine supports a variety of workpiece materials and complex shapes of cylindrical grinding tasks, through the programming can quickly switch to different processing modes, to meet the diversified needs of different industries, with a high degree of process adaptability and production flexibility.

Product parameters

Name	MK1320	MK1332-750	MK1332-1000	MK1350
Grinding OD scope (mm)	6-200	8-320	8-320	50-500
Grinding length of workpiece(mm)	500	750	1000	2000
Worktable rotation angle(°)	+4,-3	+4,-3	+4,-3	+4,-3
Center height of tops(mm)	125	180	180	270
Headstock tops(Mohs)	4#	4#/5#	4#/5#	6#
Tailstock tops(Mohs)	4#	4#	4#	6#
X axis position accuracy(um)	3	4	4	8
X axis repetitive positioning accuracy (um)	2	3	3	5
Z axis positioning accuracy (um)	4	5	6	15
Repetitive positioning accuracy (um)	2	3	3	6
OD roundness(um)	1.5	2	3	5
OD cylindricity(um)	3	4	5	8
Surface roughness(um)	0.32	0.32	0.32	0.4

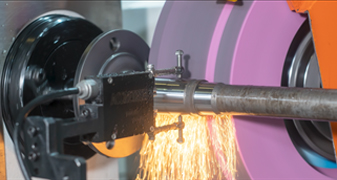

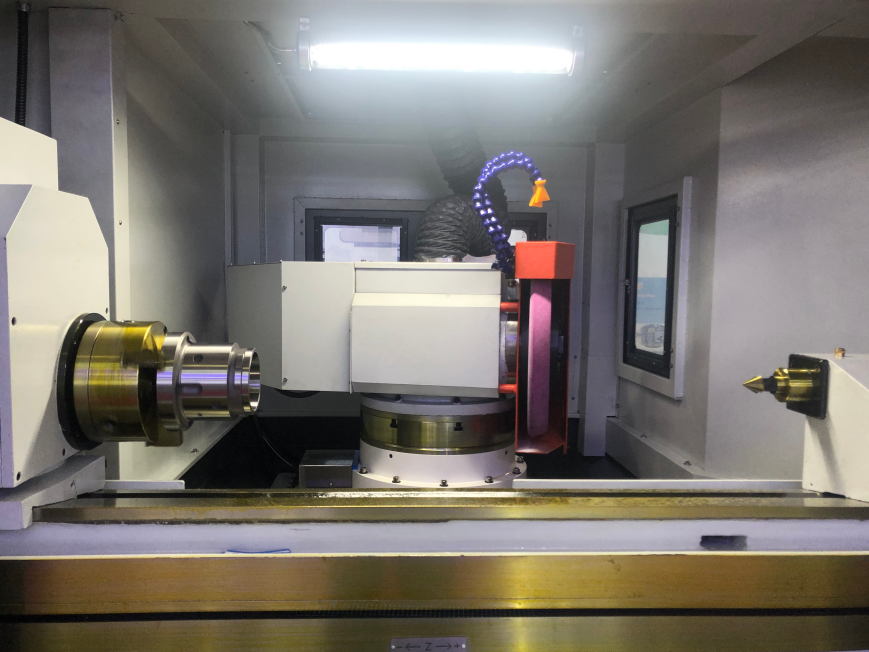

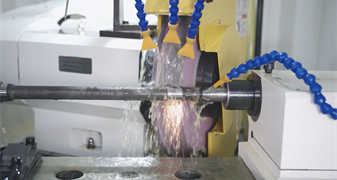

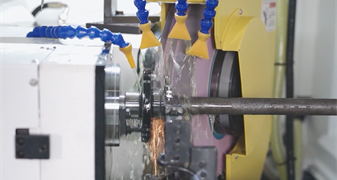

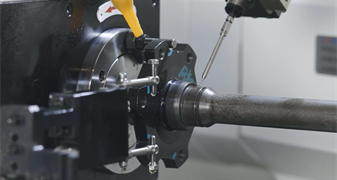

product details

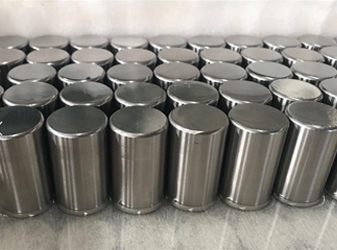

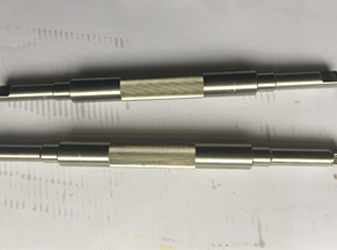

Workpiece Display

Company FAQ

1.What are your normal lead times?

Normally, 30 to 60 days

2.What kind of package do you offer?

Standard wooden case packing

3.Do you have certification of your machine?

CE certificate

4.How about the warranty service?

24 months

5.How about the installation and commissioning?

we will enclose the production specification with the machine, and we could provide the video online to you, and our engineers are available to debug machinery overseas.

6.How to select the suitable machine?

Pls tell us the machine you need, Includes drawings,specifications and other requirements.

7.How to do it if we meet the issue during the operation?

We provide completely after sales service, and our engineers are available to service machinery overseas.

8.If we want to learn how to operate the machine, Can you provide it?

Yes, we have special service team which will offer you professional guidance.
