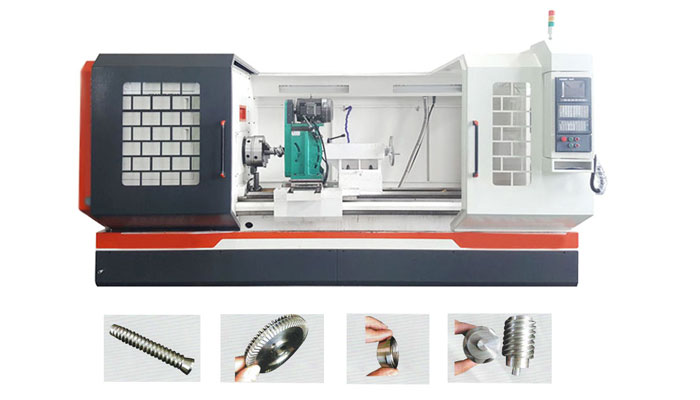

Features of Thread Turning machine

Features of Thread Turning machine are as follows：

1.Each size and model of Thread Turning machine can be equipped as a one-piece machine for internal and external threads; suitable tool forms are designed and equipped according to the workpiece of the turbine flow meter.

2.The face runout and radial runout of the cutter disc are controlled at 2μm; each piece is inspected by Coordinate measuring machine test qualified then stocked.

3.Cyclone milling motor and spindle are driven by synchronous toothed belt, with smooth transmission, no slippage and have more constant speed ratio.

4.The end runout and axial runout of the spindle are controlled at 5μm; each piece is inspected by Coordinate measuring machine test qualified then stocked.

5.Thread turning machine’s spindle and cutter is done in one clamping on the machining center;

Thread turning machine not only has high production efficiency, also because it does not use difficult to handle cutting fluid and the slices are easy to recycle, the environmental pollution of the production plant is much lower than general milling, which is an efficient green manufacturing technology and worthy of great promotion. The new generation of Thread turning machine has the functions of rotary milling, circumferential milling, automotive, grinding and polishing. CNC Thread turning machine is installed on the CNC lathe by domestic users. Make the single head multi-head, worm, screw, nut and other threaded products processing efficiency increased by 10-30 times, processing accuracy increased by two poles, the finish up to 0. um.

Thread turning machine can realize dry cutting, heavy-duty cutting, difficult material processing, ultra-high speed cutting and low power consumption. The surface roughness can reach Ra0.8μm. The spindle speed of lathe is slow, so the machine tool has high motion accuracy and good dynamic stability, which is an advanced thread processing method. It is widely used in major industries such as woodworking machinery and equipment, oil drilling industry, reducer industry, mold industry, automation industry and auto parts industry. CNC milling machine is an automatic machine tool equipped with a programmed control system. The control system can logically process the program with control codes or other symbolic instructions and decode them to move the CNC bending machine and machine the parts.

The machine body of CNC Thread turning machine is similar to the traditional machine tools. It consists of spindle drive, feed drive, bed, table and auxiliary motion device, hydraulic and pneumatic system, lubrication system, cooling device, etc. However, the overall layout, appearance, transmission system, tooling system structure and operating mechanism of CNC machine tools have undergone significant changes. The purpose of this change is to meet the requirements of CNC machine tools and give full play to the characteristics of CNC machine tools.
