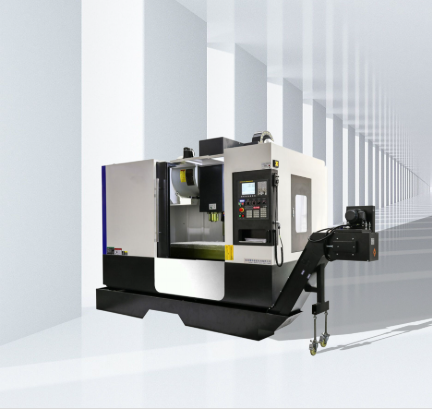

With the advancement of technology and the growing demands of the industrial sector, five-axis CNC machining centers have gradually become indispensable equipment across various industries. Whether in aerospace, military defense, automotive parts manufacturing, or mold production, five-axis machining technology has effectively addressed the challenges of processing complex parts with its high efficiency and exceptional quality.

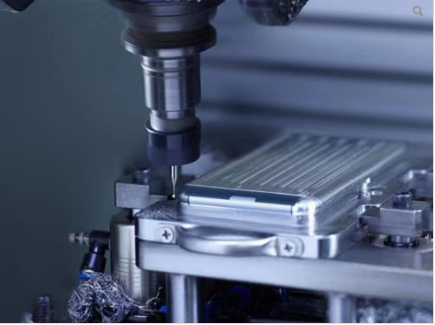

Five-axis machining refers to a process where a workpiece is machined from multiple angles and positions through five degrees of freedom (three linear axes: X, Y, Z, plus two rotational axes). This unique "tilt-and-rotate" working mode involves one rotational axis acting on the tool and another on the workpiece. Compared to traditional three-axis machining, five-axis machining allows for the processing of different sides of a workpiece without repositioning it, significantly improving both efficiency and precision.
High Machining Precision Five-axis machining centers deliver unparalleled accuracy when processing complex geometries. By minimizing errors caused by multiple setups, they ensure consistent part dimensions and superior surface quality.
Ideal for Complex Surface Machining These machines excel at handling intricate surfaces, such as those found in aerospace engine components, turbine parts, and impellers. They can perform multiple operations on a single machine, meeting the most stringent manufacturing requirements.
Reduced Production Costs By minimizing the number of setups required, five-axis machining lowers the cost of fixtures and reduces labor costs associated with switching between processes. Additionally, their high-speed and high-efficiency capabilities further reduce overall production costs.
Increased Productivity The efficient operation of five-axis machining centers enables businesses to complete large orders quickly, enhancing their competitiveness in the market.
Improved Product Quality Precise control minimizes human-induced inconsistencies, ensuring consistent and reliable product quality. This is critical for maintaining high standards and extending product lifespans.
Unique Working Mode The distinctive "tilt-and-rotate" working mode of five-axis machining centers offers numerous advantages. With two rotational axes—one for the tool and one for the workpiece—these machines achieve highly efficient machining of complex components. Furthermore, their superior precision and flexibility allow them to tackle tasks that are impossible for traditional three-axis machines. These features make five-axis machining centers indispensable in high-precision industries like aerospace and automotive manufacturing.
Wide Range of Applications Industries such as aerospace, automotive manufacturing, medical devices, and machinery production have all benefited from the adoption of five-axis machining technology. This has driven rapid advancements and technological progress in these sectors.
Four-axis machining centers are primarily used for machining flat parts, such as machine bases and panels. In contrast, five-axis machining centers can handle more complex 3D surfaces, such as aerospace engine components, helical surfaces, and threads, offering significantly greater versatility.
Five-axis machining centers provide higher precision because the tool can rotate freely along any direction of the machining surface, unrestricted by plane limitations. Four-axis machining centers, however, cannot achieve this level of complexity.
Due to the additional rotational axes and advanced capabilities, programming for five-axis machining centers is more complex. Operators must possess specialized skills and knowledge to fully leverage their potential.
Five-axis machining centers have become essential tools in modern manufacturing thanks to their unique working modes and remarkable technical advantages. Not only do they enhance product quality and production efficiency, but they also deliver significant economic and social benefits to businesses. As technology continues to evolve, five-axis machining centers will remain at the forefront of precision manufacturing, leading the way in shaping the future of industry.
