500 ton Cold Chamber Plus Aluminum Alloy Servo Die Casting Machine

PRODUCT > Die Casting Machine > 500 ton Cold Chamber Plus Aluminum Alloy Servo Die Casting Machine
    • 1
    • 2
    • 3

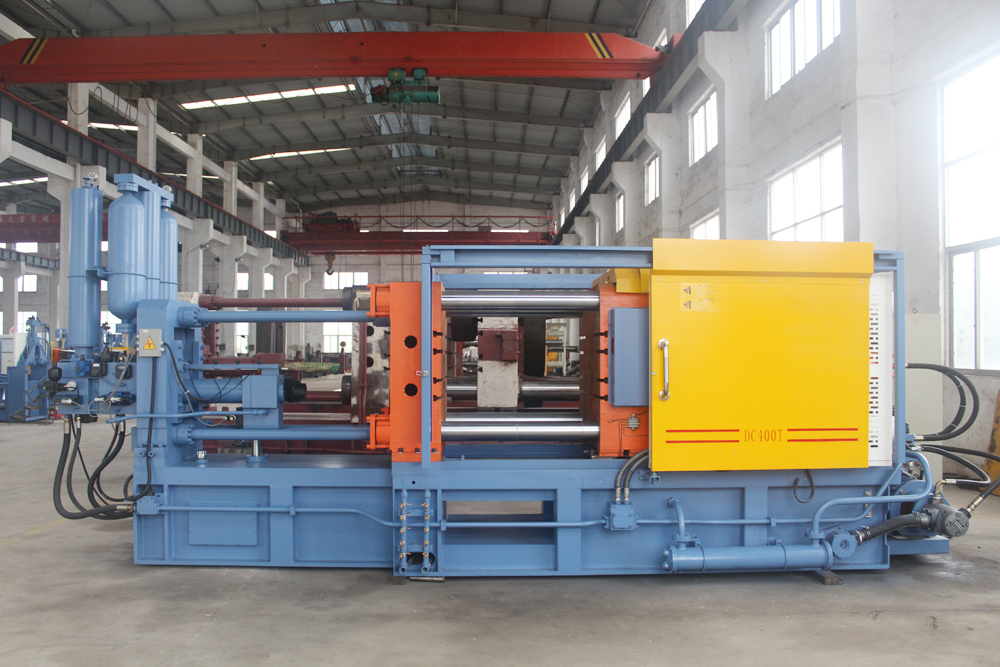

500 ton Cold Chamber Plus Aluminum Alloy Servo Die Casting Machine


● Clamping Force: 180ton-2500ton
● Applicable Industries: Energy & Mining, Home Use, Printing Shops, Food & Beverage etc

♦High quality and wear resistance thicken casting platen adopts finite element analysis design that brings even stress distribution without distortion.

♦Intergrated toggle with multi point stress loading design;die locking precision is higher.

♦High tensile thicken chrom plated tie bar is more sturdy and durable.

♦Proportional control of system pressure and flow, with multi¬stage pressure and speed control and low-pressure die close protention function.

♦Good quality high and low pressure dual pump with high performance and low noise,saves energy and improves production efficiency.

♦Adopt Delta/Omron/Siemens computer control system with stable performance and high precision,could control and supervise every movement date and status,which is convenient for operation and maintenance.

♦The system is equipped with self diagnosing and failure alarm function for easy removal problems.




ITEM

Unit

 DC180T

DC200T

DC230T

DC260T

DC300T

DC320T

DC360T

DC400

DC500T

Clmping Force

KN

1800

2000

2300

2600

3000

3200

3600

4000

5000

Clamping Stroke

mm

380

400

430

430

460

490

520

570

650

Die  Thickness(Min-Max)

mm

250-550

250-600

250-650

250-650

300-700

300-700

300-700

300-700

350-850

Platen Size(HxV)

mm

715*810

740*821

795*860

810*906

900*900

930*930

980*980

1050*1050

1225*1200

Space Between Tie
Bars(W×H)

mm

480*480

510*510

525*525

540*540

570*570

590*590

630*630

700*700

760*760

Tie Bar Diameter

mm

85

90

100

100

110

120

130

130

150

Injection Force

KN

225

235

250

280

285

310

340

405

480

Injection Sroke

mm

340

385

385

410

410

410

500

500

600

Planr Of Dan

mm

40/50/60

50/60/70

50/60/70

50/60/70

50/60/70

50/60/70

60/70/80

60/70/80

70/80/90

Shot Weight

Kg

0.8/1.3/1.8

1.4/2/28

1.4/2/2.8

1.6/2.3/3.2

1.6/2.3/3.2

1.6/2.3/3.2

2.7/3.6/4.7

2.7/3.6/4.7

4.0/5.2/6.6

CastingPressure (Internsification)

Mpa

120/75/55

119/83/61

127/88/85

143/99/63.4

145/100/64

155/110/80

120/88/88

144/106/81

125/96/75

Max Casting
Area(40Mpa)

cm²

450

500

575

650

750

800

900

1000

   1250

Injection Position

mm

0/-70/-140

0/-70/-140

0/-70/-140

0/-80/-160

0/-80/-160

0/-160

0/-175

0/-175

0/-250

Plurger Penetration

mm

120

140

140

140

140

140

200

200

250

Flange Diameter

mm

110

110

110

110

110

110

110

110

165

Flange Protrusion

mm

10

10

10

12

12

12

12

12

15

Ejection Force

KN

132

132

132

165

165

175

180

180

315

Ejection Stroke

mm

80

100

100

100

100

100

125

125

150

System Working
Pressure

Mpa

14

14

14

14

14

14

14

14

16

Motor Power

KW

15

15

15

18.5

22

22

22

22

37

Oil Tank Capacity

L

560

600

650

740

750

750

800

800

   1000

Machine Weight

Ton

6.5

7

8.5

11

12

13

15.5

17

   27.5

Machine Dimension

cm

550*135*255

580*140*255

590*145*260

600*150*260

610*160*265

620*160*270

660*165*280

660*170*280

750*200*290










1.What are your normal lead times?

Normally, 30 to 60 days

2.What kind of package do you offer?

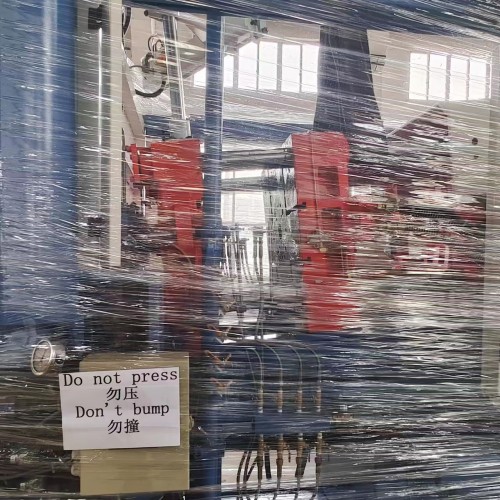

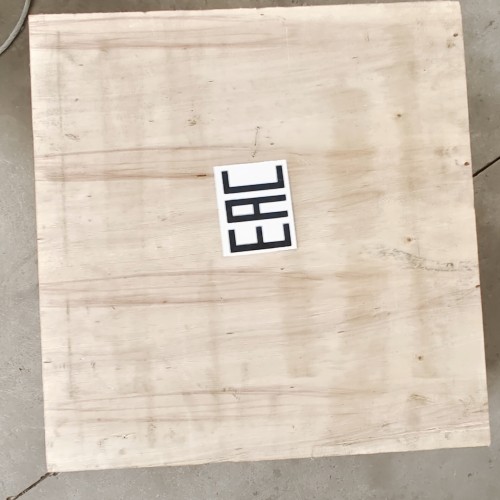

Standard wooden case packing

3.Do you have certification of your machine?

CE certificate

4.How about the warranty service?

24 months

5.How about the installation and commissioning?

we will enclose the production specification with the machine, and we could provide the video online to you, and our engineers are available to debug machinery overseas.

6.How to select the suitable machine?

Pls tell us the machine you need, Includes drawings,specifications and other requirements.

7.How to do it if we meet the issue during the operation?

We provide completely after sales service, and our engineers are available to service machinery overseas.

8.If we want to learn how to operate the machine, Can you provide it?

Yes, we have special service team which will offer you professional guidance.
