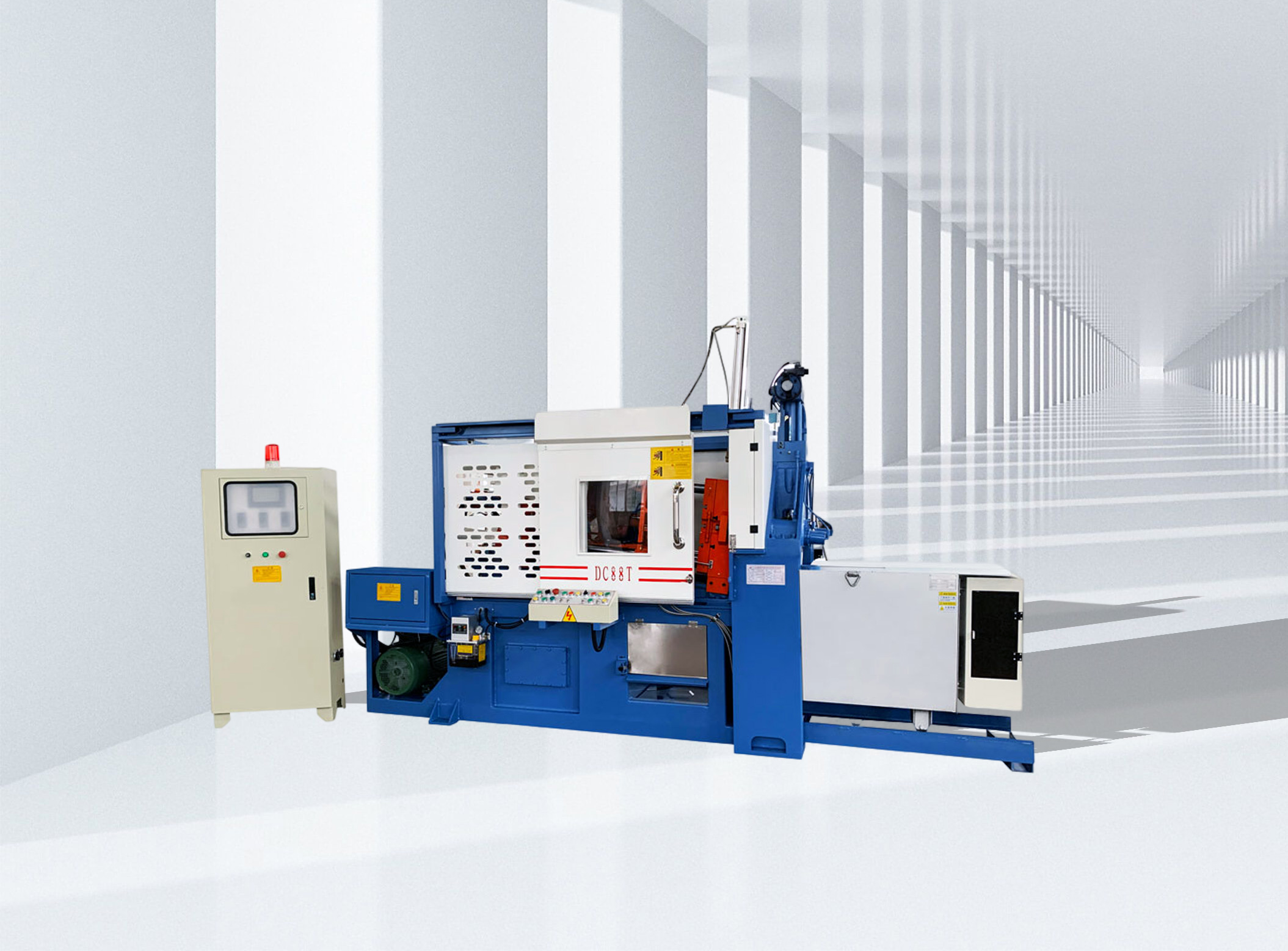

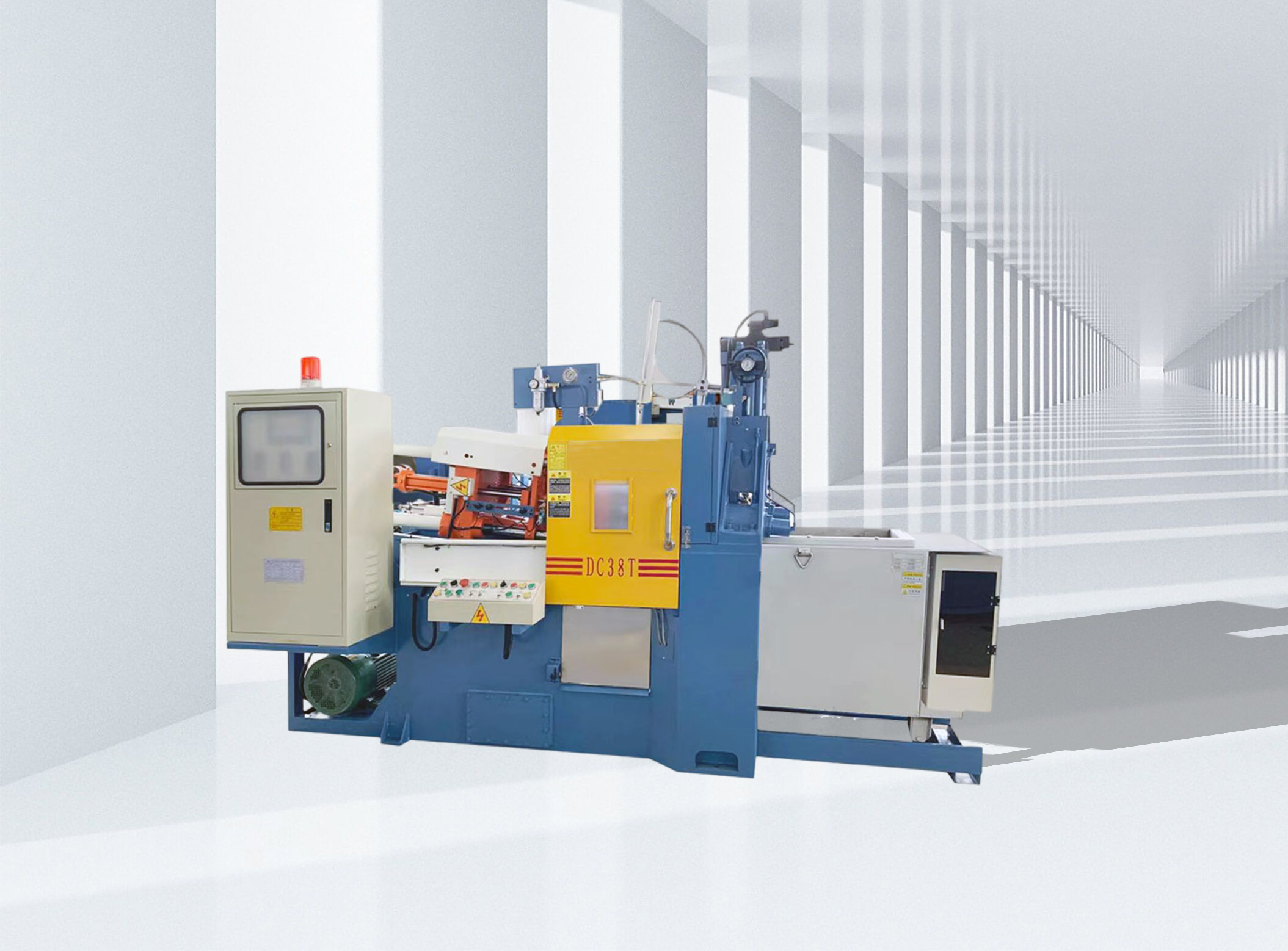

160 Ton Hot Chamber Die Casting Machine for Brass Light Cover Metal
160 Ton Hot Chamber Die Casting Machine for Brass Light Cover Metal
● Clamping Force:25ton-400ton
● Easy operation and professional design ensure quality and precision.
Δ Nozzle,nozzle body and gooseneck are heated by electricity.The temperature can be held stable to avoid the defective products;
Δ Adopt high quality hydraulic valves ensure hydraulic system stability and excellent performance;
Δ Hydraulic drive gear type mould height adjustment with convenient operation and accurate adjustment;
Δ Good quality electronic burner,burning fully without pollution.Stable performance and high safety
Δ Adopts automatic concentrated lubrication system to improve machine service life and decreases repair times.
Δ Adopts precise artificial intelligent computer control system,which is convenient for operation and maintenance.
Δ Delta computer control system with stable and fast performance,high precision control and easy to operate.
Δ The system is equipped with self diagnosing function and failure alarm function for removal problems.
ITEM | Unit | DC25T(A) | DC25T(B) | DC38T | DC50T | DC68T | DC88T |
Clamping Force | KN | 250 | 250 | 380 | 500 | 680 | 880 |
Clamping Stroke | mm | 125 | 150 | 160 | 200 | 230 | 250 |
Ejection Force | KN | 13 | 23 | 44 | 50 | 50 | 65 |
Ejection Stroke | mm | 40 | 50 | 50 | 60 | 60 | 60 |
Die Thickness(Min-Max) | mm | 150-220 | 100-300 | 110-270 | 120-330 | 120-330 | 150-350 |
Platen Size(HxV) | mm | 390*368 | 395*417 | 450*420 | 500*480 | 540*490 | 530*577 |
Space Between Tie Bars (W*H) | mm | 278*232 | 260*260 | 295*295 | 335*285 | 335*335 | 357*357 |
Tie Bar Diameter | mm | 40 | 45 | 50 | 55 | 55 | 63 |
Injection Position | mm | 0 | 0 | 0 | 0 | 0 | 0/-60 |
Injection Stroke | mm | 84 | 100 | 105 | 105 | 105 | 130 |
Traverse Stroke | mm | 130 | 140 | 180 | 190 | 190 | 190 |
Injection force | KN | 27 | 31 | 63 | 65 | 65 | 67 |
Diameter of Plunger | mm | 38 | 40 | 36/40/45 | 40/45/50 | 45/50/55 | 45/50/55 |
Max Casting Force | Bar | 238 | 246 | 620/500/396 | 517/409/331 | 517/409/331 | 420/340/282 |
Shot Weight | Kg | 0.6 | 0.8 | 0.7/0.85/1 | 0.85/1/1.3 | 1/1.26/1.55 | 1.1/1.3/1.6 |
Max Projecting Area | cm² | 63 | 81 | 45/56/70 | 73/93/115 | 97/122/151 | 209/258/312 |
System Pressure | Mpa | 7 | 8 | 10 | 10 | 10 | 10.5 |
Motor Power | KW | 5.5 | 7.5 | 7.5 | 7.5 | 7.5 | 11 |
Crucible Capacity | Kg | 160 | 250 | 250 | 325 | 325 | 55 |
Oil Consumption | Kg/h | 1.8 | 2.5 | 3.5 | 3.8 | 3.8 | 4 |
Oil Tank Capacity | L | 150 | 150 | 200 | 200 | 200 | 230 |
Machine Weight | Ton | 2.1 | 2.4 | 2.6 | 3.3 | 3.4 | 3.6 |
Machine Dimension | cm | 270*100*160 | 270*130*180 | 300*140*180 | 355*145*200 | 355*145*200 | 385*150*200 |
1.What are your normal lead times?
Normally, 30 to 60 days
2.What kind of package do you offer?
Standard wooden case packing
3.Do you have certification of your machine?
CE certificate
4.How about the warranty service?
24 months
5.How about the installation and commissioning?
we will enclose the production specification with the machine, and we could provide the video online to you, and our engineers are available to debug machinery overseas.
6.How to select the suitable machine?
Pls tell us the machine you need, Includes drawings,specifications and other requirements.
7.How to do it if we meet the issue during the operation?
We provide completely after sales service, and our engineers are available to service machinery overseas.
8.If we want to learn how to operate the machine, Can you provide it?
Yes, we have special service team which will offer you professional guidance.
